Chanchai Stainless is a reputable manufacturer and supplier of high-quality stainless steel products in Bangkok, Thailand. Among its extensive product range, Stainless Steel Sheets and Plates are among the most popular products, renowned for their outstanding surface finish, corrosion resistance, and strength. These products are produced according to international standards and are supplied in different grades, thickness, and surface finish to cater to various industrial and ornamental applications. With a steadfast devotion to accuracy, robustness, and timely shipment, Chanchai Stainless caters to a wide range of customers in industries including construction, manufacture, food processing, and chemical industries.
Chanchai Stainless Stainless Steel Sheets and Plates are usually made with grades like SS304, SS316, and SS430, which are renowned for their superior corrosion resistance, formability, and mechanical strength. Common mechanical properties are tensile strength between 515–620 MPa, yield strength of 205–310 MPa, and elongation greater than 30%, varying with the grade and thickness. These plates and sheets have high hardness, oxidation resistance, and excellent smooth and even surfaces. They come in hot-rolled and cold-rolled finishes and are available in finishes such as 2B, BA, mirror, and matte. They have balanced chemical and mechanical properties and are used both in structural and hygienic conditions.
| Standards | ASTM A240 / ASME SA240, MSRR, AMS 5513, BS |
|---|---|

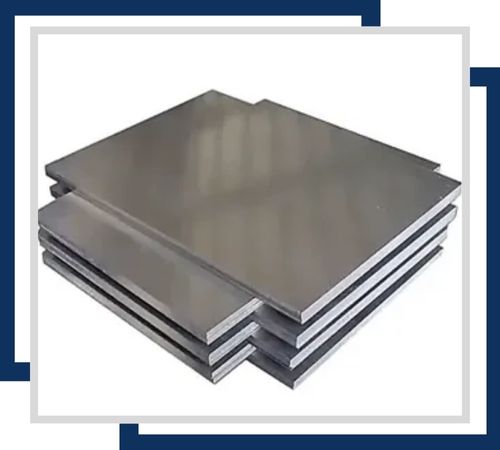

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Surface | NO.1, NO.4, NO.8, 2B, 2D, BA, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

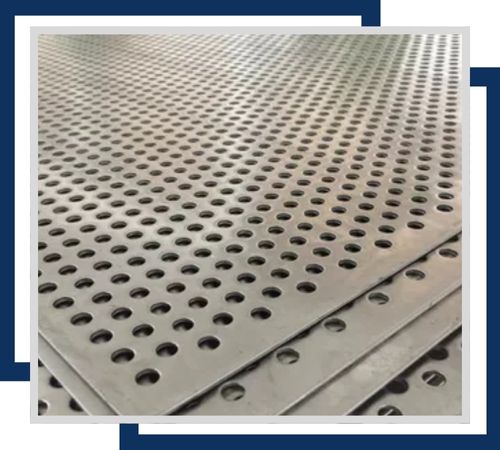

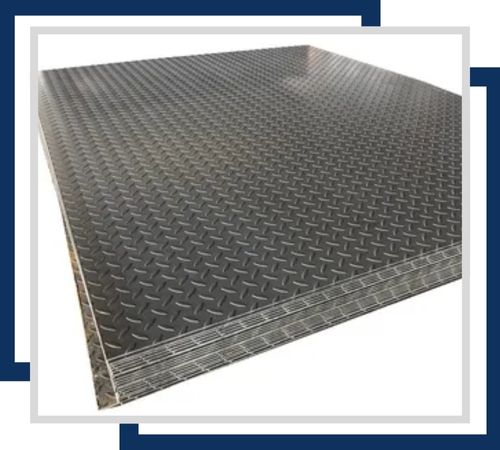

| Form | Perforated Sheet, Chequered Plate, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Available Stock | Shim Sheet, hot rolled, cold rolled, SS Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle),annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Polish, Rolling, Cutting, Bending, Forging, Cladding, Heat Treatment, Annealed, Pickling, Minor Fabrication Etc. |
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| SS Sheets and Plates | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| SS Sheets and Plates | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Chanchai Stainless prides itself in the supply of high-quality material, stainless steel sheets and plates, with proper testing procedures that guarantee the optimum performance of our products. We perform hardness tests, spectrochemical analysis, PMI testing, micro and macro testing, flaring, pitting resistance, and IGC tests to ensure our materials meet the highest standards. With this commitment to excellence, we offer our clients all the necessary documentation, such as commercial invoices, packaging lists with accurate net and gross weights, box numbers, and labels. A legalized or attested Certificate of Origin, along with a Third-Party Inspection Certificate, ensures complete transparency and 100% client satisfaction in our stainless steel sheets and plates pricing.
Yes, stainless steel sheets are highly corrosion-resistant due to their chromium content, which forms a protective oxide layer. This makes them suitable for various environments, including marine and industrial applications.
Yes, stainless steel plates can withstand high temperatures, with specific grades like 310, 316, and 321 offering excellent heat resistance. They maintain strength and structural integrity at elevated temperatures, making them suitable for various high-temperature applications.
The pressure rating of stainless steel sheets depends on factors like thickness, grade, and application. Typically, they are used in pressure applications up to 10,000 psi or more, depending on these variables.
Yes, stainless steel sheets and plates can be ordered in custom sizes and polishes to meet specific requirements. Many suppliers offer customization options for dimensions, finishes, and surface treatments. For more details mail us on sales@chanchaistainless.com
Stainless Steel Plates and Sheets are applied extensively in situations where durability, cleanliness, and visual attractiveness are needed. They are used in building to clad walls, roof, and structural elements. They are perfectly suited for processing equipment in the food and pharma industries since they have non-reactive and easy-cleaning surfaces. They also find application in manufacturing kitchen appliances, tanks, pressure vessels, and auto components. They are appropriate for use in elevators, signage, and interior decoration. Chanchai Stainless provides sheets and plates cut to specified sizes and finishes to accommodate the diverse requirements of industrial, commercial, and building applications.
