Home > Sheet and Plates > Stainless Steel 305 Sheet and Plates
Chanchai Stainless, a well-established Bangkok-based manufacturer and supplier, is renowned for its quality in stainless steel products. Of its high-end product lines, the Stainless Steel 305 Sheet and Plate are distinguished by their high strength, durability, and aesthetic appeal. Engineered to work in a variety of industries like construction, automotive, and heavy manufacturing, these sheets and plates are functional as well as visually appealing. Renowned for their higher corrosion resistance and sound durability, they guarantee consistent performance under difficult conditions. Dedicated to the principles of quality, punctual delivery, and customer satisfaction, Chanchai Stainless remains a reliable name in the stainless steel industry.
Stainless Steel 305 has 18–20% chromium, 8–10% nickel, and controlled percentages of manganese, silicon, and carbon. It has low carbon, which makes it resistant to precipitation of carbides while welding, thus making it very durable. Mechanically, it has tensile strength ranging from 515–700 MPa, yield strength of 205 MPa, and elongation of approximately 40%, which makes it very formable. The alloy is also non-magnetic in annealed state, exhibiting excellent resistance to oxidation and pitting. Highly workable, it can be deep drawn and formed without sacrificing strength or stability.
| Element | 305 |
| Carbon | 0.12 |
| Chromium | 17.0-19.0 |
| Nickel | 10.5-13.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Property | 305 |
| Yield Strength, min. (ksi) | 25 |
| Tensile Strength, min. (ksi) | 70 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 88 |
Contact us to get a quick quote for your requirement.
The 305 stainless steel in hot rolled sheets is corrosion-resistant, strong, and versatile. These sheets are usually available in various thicknesses between 1.5mm and 25mm and up to 2000mm in width. Ideally, they find applications in heavy-duty sectors and structural elements.
These cold-rolled plates have excellent corrosion resistance and a smooth, polished surface. They are available in thicknesses from 0.3mm to 3mm and widths up to 1500mm and are widely used in automotive, kitchen, and architectural applications.

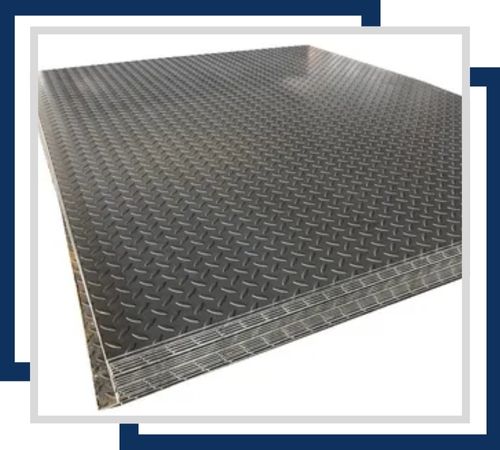

Stainless Steel 305 chequered plates are surface patterned with slip resistance; they have a good corrosion-resistant property. It is available in 2mm to 10mm thickness and 1250mm width for use in flooring and stair treads.
The perforated stainless steel 305 sheets have been specially designed to exhibit excellent corrosion resistance, having holes for ventilation and aesthetic purposes. They usually vary in sizes ranging from 0.5mm to 6mm thickness. The sheet may be ordered as per required dimension and hole pattern.
Used for precise spacing and levelling, these shim sheets provide superior corrosion resistance. These are available in thicknesses ranging from 0.1mm to 3mm and in various dimensions and are ideal for mechanical and structural applications where exact tolerances are required.
Known for their excellent corrosion resistance and aesthetic appeal, polished plates come in thickness from 0.5mm up to 50mm and up to 2000mm width. They are mainly used for decorative and high-visibility applications where a desired high-gloss finish is achieved.
Chanchai Stainless promises superior customer satisfaction supplemented by thorough documentations of Stainless Steel 305 Sheets and Plates. The documentations that our company offers contain the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. All the documents authenticate products for superiority qualities and thereby are helpful in attaining the utmost trust from all valued customers. We also provide Stainless Steel 305 Sheets and Plates along with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our commitment to continuous product excellence.
Stainless Steel 305 Sheets and Plates are widely used in applications demanding excellent corrosion resistance combined with superior formability. They are extensively applied in food processing, chemical, and pharmaceutical industries where hygiene, durability, and resistance to oxidation are essential. Their smooth finish and resistance to staining also make them a preferred choice in architectural projects, modern kitchen appliances, and medical equipment. Also, their performance under high-temperature and marine environments allows them to be used in tanks, piping systems, and heat exchangers. With their combination of mechanical strength and attractive appearance, they remain much appreciated in a broad range of industrial and commercial applications.
