Chanchai Stainless, Thailand-based in Bangkok, is a reliable manufacturer and supplier of premium stainless steel 440B plates and sheets. Famous for having exceptional hardness, wear resistance, and corrosion protection, these plates and sheets are prepared for demanding industrial and engineering uses. Chanchai Stainless provides precise manufacturing and adherence to global standards and offers 440B plates and sheets in different sizes and thicknesses. Their products offer stable operation for customers in Thailand as well as international markets, with durability accompanied by resistance against modest corrosion and mechanical stress.
440B stainless steel plates and sheets consist of a martensitic stainless steel alloy with about 16–18% chromium and 0.60–0.75% carbon. Such a composition enables the material to be heat treated to develop high hardness, preferably in the range 55 HRC, along with good corrosion resistance and toughness. With tensile strength varying from 650 to 850 MPa, 440B has high wear resistance and dimensional stability and is used for parts where friction and mechanical wear are encountered.
| Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Plates Thickness | 0.3 mm to 120 mm |
| Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Profiling | Plasma Plate Cutting, Laser Plate Cutting, Oxy-propane Flame Cutting |
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 440B | 0.6 -0.75 | 1.00 max | 1.00 max | 0.04 max | 0.030 max | 16.00 -18.00 | – |
| Tempering Temperature (°C) | Tensile Strengtd (MPa) | Yield Strengtd 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed* | 758 | 448 | 14 | 269HB max | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.
The excellent corrosion resistance provided by Stainless Steel 440B Hot Rolled Sheets ensures that it can be delivered in sizes between 3mm up to 150mm thickness, and in up to 2500mm width, for use where high strength and resistance to wear is required.

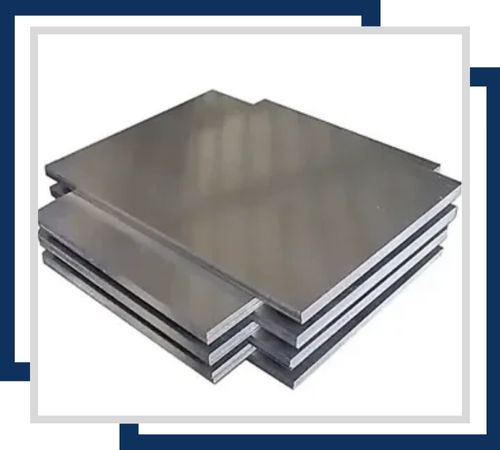

Cold-rolled stainless steel plates 440B have excellent corrosion resistance and a bright finish. These plates are available in a thickness range of 0.3mm to 6mm and widths up to 2000mm, which makes them ideal for precision applications that require tight tolerances.

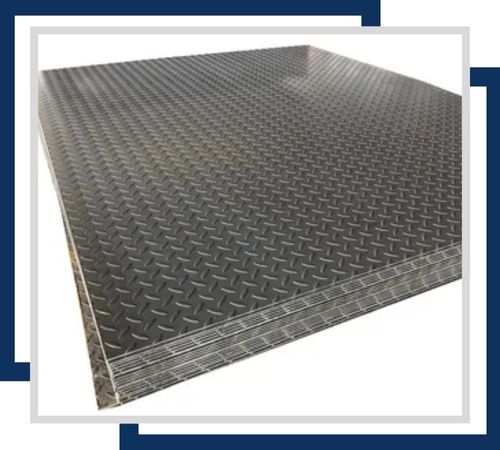

Stainless Steel 440B Chequered Plates, with raised patterns for improved grip, are resistant to corrosion. The thicknesses available are 1.5mm to 10mm, and the widths go up to 1500mm, which is perfect for flooring and stair treads.

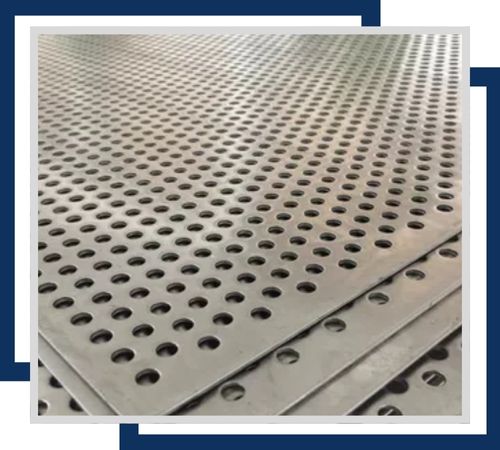

The perforated sheets are made from Stainless Steel 440B, providing corrosion resistance and ventilation. Generally available in a thickness range of 0.5mm to 3mm, and sheet sizes up to 2000mm x 4000mm, the perforated sheets are used for filtration, architectural, and decorative applications.
Stainless Steel 440B Shim Sheets are corrosion resistant and find applications in fine adjustment of machines and tools. The sheets have a thickness ranging from 0.05mm to 3mm and come in standard sizes such as 1000mm x 2000mm.
The 440B Polished Plates of Stainless Steel offer corrosion resistance along with an excellent aesthetic appeal, and are offered in a variety of thicknesses between 1mm and 50mm and widths up to 2000mm, especially for decorative and architectural applications.
At Chanchai Stainless, we give prime importance to quality along with great customer service backed up by rich documentation of the excellent Stainless Steel 440B Sheets and Plates that we deliver. We give essential documents that include the commercial invoice, the packing list, fumigation certificate, heat treatment chart, quality assurance plan, and a lab test report NABL approved. Such rich documentation of these premium quality products increases trust and confidence in the product from the most valued customers’ side. Besides, we provide Stainless Steel 440B Sheets and Plates with different test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate, as a reflection of our commitment to excellence and customer satisfaction.
Stainless steel 440B sheets and plates find extensive application where hardness and moderate corrosion resistance are necessary. The most common applications involve the production of cutting tools, bearings, valve parts, and precision instruments. They are also utilized in automotive components, surgical equipment, and industrial machinery where strength and wear resistance are vital. The fact that they can preserve mechanical properties when exposed to moderate corrosive conditions makes 440B sheets and plates perfect for applications involving repeated stress and abrasive exposure.
