Chanchai Stainless is a renowned manufacturer and supplier company based in Bangkok, Thailand, with a reputation for providing high-quality stainless steel materials of unmatched reliability. The company provides a wide variety of Stainless Steel Sheets, Plates, and Coils to cater to the needs of construction, automobile, and various engineering industries. Among its value-added products, Stainless Steel 17-7 PH Sheets and Plates stand out for their superior performance in high-demanding sectors. These high-precision-engineered materials are relied upon for such critical uses in aerospace, defense, and advanced engineering where strength, durability, and corrosion resistance are the key considerations. Chanchai Stainless guarantees innovation with reliable service.
Stainless Steel 17-7 PH is a precipitation-hardening alloy consisting mainly of iron, chromium, 16–18% nickel, 6.50–7.75% manganese, and minor additions of aluminum (0.75–1.50%). The alloy has good dimensional stability, high tensile strength, and excellent resistance to fatigue and oxidation. Its mechanical properties can be further improved through heat treatment, enhancing hardness and resilience. 17-7 PH resists stress stability, and hence it suits the demanding conditions. With its excellent corrosion resistance and high-temperature tolerance, the alloy provides stable performance in industrial, aerospace, and automobile applications demanding strength over an extended period of time.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Property | 17-7PH ≤ 0.010 inch thick | 17-7PH > 0.010 inch thick |
|---|---|---|
| Yield Strength, min. (ksi) | 65 | 55 |
| Tensile Strength, min. (ksi) | 150 | 150 |
| Elongation, min. (%) | – | 20 |
| Hardness, max. (Rb) | – | 92 |
Contact us to get a quick quote for your requirement.
Stainless Steel 17-7 PH Hot Rolled Plates are characterized by excellent strength and hardness. Available in a range of sizes and thicknesses from 3mm to 120mm, the plates have good corrosion resistance and can be used under high-stress conditions.

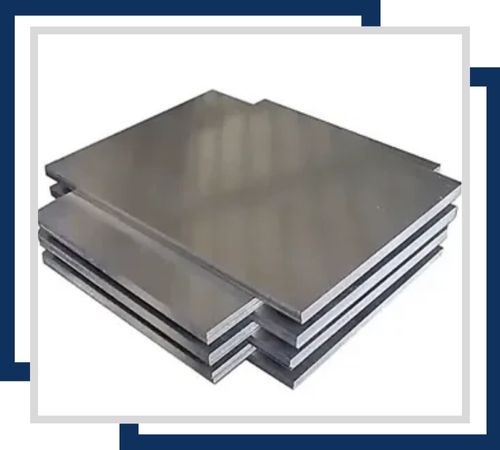

Stainless Steel 17-7 PH Cold Rolled Sheets have a very smooth surface finish and high precision. These sheets are available in a range of thickness from 0.2mm to 6mm. The sheets possess excellent corrosion resistance and are useful for applications that require tight tolerances.
Stainless steel 17-7 PH chequered plates have a raised pattern that increases the grip and safety. It is commercially available from 2mm to 12mm in thicknesses. It is applied in flooring and other anti-skid applications. Their good corrosion resistance suits them well for both industrial and marine environments.
The Stainless Steel 17-7 PH Perforated Sheets have many hole sizes and patterns for various filtration and ventilation applications. They are typically in the thickness of 0.3mm to 3mm. Corrosion resistance allows these sheets to be long-lasting in all uses.

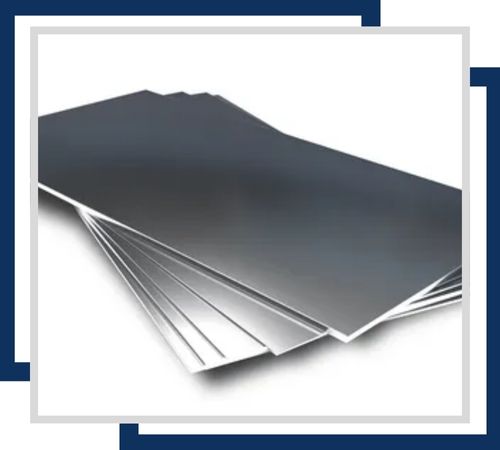

Stainless Steel 17-7 PH Shim Sheet is a thin, precision-cut sheet for spacing and alignment in machinery. It is available in 0.05mm to 3mm thicknesses, giving excellent corrosion resistance. Its sheets ensure reliable performance in very demanding mechanical environments.
Stainless Steel 17-7 PH Polished Plates have a bright polish finish. They come in thickness from 3mm up to 100mm. These plates exhibit strong corrosion resistance. They are good for decorative and sanitary applications.
Chanchai Stainless is committed to providing a great customer experience by offering full documentation for its high-quality Stainless Steel 17-7 PH Sheets and Plates. We provide important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports to prove authenticity and give strength to our superior quality. Moreover, our Stainless Steel 17-7 PH Sheets and Plates are provided with many test certificates like MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These records assuredly ensure our customer satisfaction and constant product excellence.
Stainless Steel 17-7 PH Plate and Sheet are extensively used in industries which require higher strength along with high corrosion resistance. They have superior fatigue life and mechanical stability and hence are used for aerospace applications like landing gear parts, brackets, and structural components. The alloy is also of immense use in automobile engineering, used in springs, fasteners, and diaphragms. Military and defense applications also use 17-7 PH in high-performance equipment that needs stability at high temperatures. The material also has application in valves, industrial equipment, and precision instruments. All these together make the material a must for both sophisticated and critical uses.
