Chanchai Stainless is a prominent producer and supplier of top-quality stainless steel products, established in Bangkok, Thailand. Of its wide portfolio of products, stainless steel 316Ti sheets and plates are designed to deliver outstanding performance under high-temperature and highly corrosive conditions. These titanium-stabilized materials are made to meet rigorous global standards of long-term durability, strength, and weldability. Equipped with first-class production facilities and a sincere dedication to quality, Chanchai Stainless provides dependable sheet and plate solutions to chemical processing, power generation, marine, food, and pharmaceutical industries around the globe—establishing it as a reliable partner for demanding industrial applications worldwide.
316Ti sheets and plates are made up of chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and titanium (up to 0.7%). The presence of titanium stabilizes the alloy, avoiding sensitization and intergranular corrosion, particularly after welding or during long exposure to heat. The sheets and plates exhibit superb mechanical properties with tensile strength of approximately 550 MPa and yield strength of about 240 MPa. They also have excellent ductility, formability, and toughness even at high temperatures. The molybdenum provides increased resistance to crevice corrosion and pitting, making 316Ti suitable for both chemical exposure and thermal stress conditions.
Specifications : ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
| SS 316Ti | min. | – | 10.0 | – | – | – | – | – | 16.0 | 2.00 |
| max. | 0.08 | 14.0 | 0.75 | 0.10 | 0.030 | 2.00 | 0.045 | 18.0 | 3.00 |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316Ti | 515 | 35 | 205 | 75 | 205 |
Contact us to get a quick quote for your requirement.
Stainless Steel 316Ti Hot Rolled Sheet and Plates are highly resistant to high temperatures and corrosion, making them suitable for chemical processing and petrochemical industries. They are very durable and can be used in demanding industrial applications.

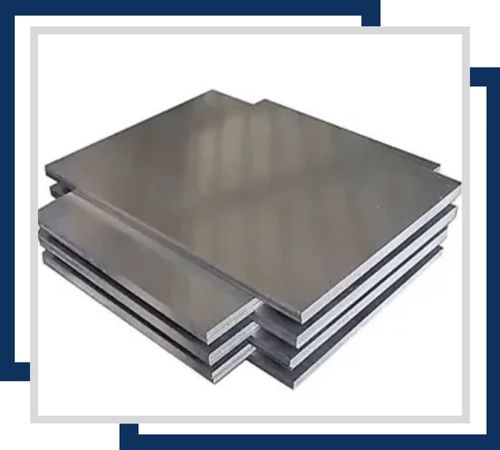

Stainless Steel 316Ti Cold Rolled Sheet and Plates have a smooth surface finish and precise dimensions, making them ideal for applications requiring superior resistance to high temperatures and corrosion, such as in marine and chemical environments.

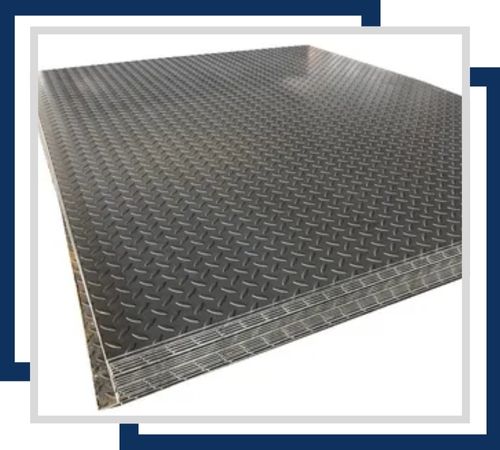

The stainless steel 316Ti chequered sheet and plates are provided with slip resistance and durability that can be utilized for flooring and stair treads in industrial as well as commercial applications. These provide excellent corrosion resistance and high-temperature stability.

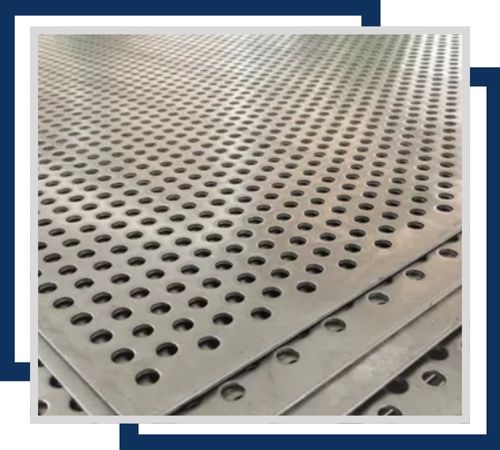

Stainless Steel 316Ti Perforated Sheet and Plates are used for filtration, ventilation, and as decorative purposes. They combine the strength of resistance against corrosion with the aesthetic value while having accurate perforations to add custom design and functionality in extreme environments.

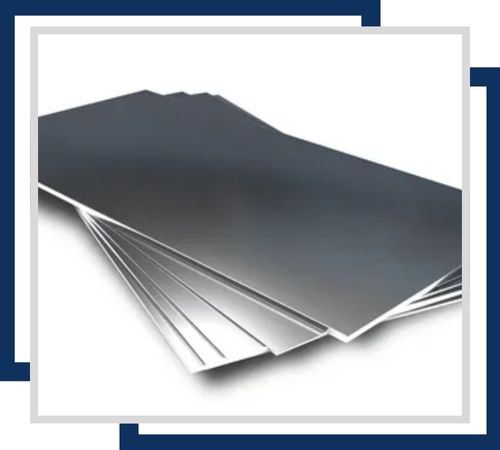

Stainless Steel 316Ti Shim Sheet and Plates are used in machinery and equipment for precise spacing and alignment. With high-temperature resistance and resistance against corrosion, they provide stability and durability in critical industrial applications.
Stainless Steel 316Ti Polished Sheet and Plates have an excellent quality, reflective finish, making them very good for architectural and decorative applications. They have outstanding corrosion and high-temperature resistance, so they provide environment where performance and appearance both are important are worthwhile.
Chanchai Stainless providing hassle-free experience for our customers, offering them with complete documents regarding high-quality Stainless Steel 316Ti Sheets and Plates from us. Important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports ensure that the products come from the source of authenticity and of superior quality. In addition, our Stainless Steel 316Ti Sheets and Plates are provided with different test certificates like MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection certificates to ensure full customer satisfaction along with continuous efforts toward product excellence.
SS316Ti plates and sheets find extensive applications in applications that require resistance to corrosion, heat, and chemical attack. In the petrochemical and chemical sectors, they apply to tanks, heat exchangers, and reactor vessels because they resist acidic and chloride environments. In marine environments, they can effectively combat saltwater corrosion. They are also appropriate for use in furnace linings, exhaust systems, food manufacturing equipment, and pharmaceutical production where hygiene and long-life characteristics are paramount. Their strength and resistance to thermal degradation make them suitable for fabrication in environments involving high pressure and temperature cycles.
