Chanchai Stainless supplies Stainless Steel 317 Sheets and Plates in Bangkok, Thailand. These products are engineered to resist aggressive chemical environments. With more molybdenum than 316, grade 317 offers excellent protection against pitting and crevice corrosion, especially in chloride and acidic conditions. These sheets and plates combine durability, toughness, and weldability, ensuring long-term performance in harsh settings. Stainless Steel 317 is a cost-effective option when standard grades like 304 and 316 fall short. Chanchai Stainless ensures precision manufacturing, supplying 317 sheets and plates that meet international standards for strength, corrosion resistance, and reliability.
Stainless Steel 317 contains chromium (18-20%), nickel (11-15%), molybdenum (3-4%), and low carbon. Its mechanical properties include a tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 35-40%. The high molybdenum content improves resistance to chlorides and reducing acids. These sheets and plates maintain toughness at both elevated and subzero temperatures while providing good weldability. Their enhanced chemical resistance makes them suitable for challenging environments.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.

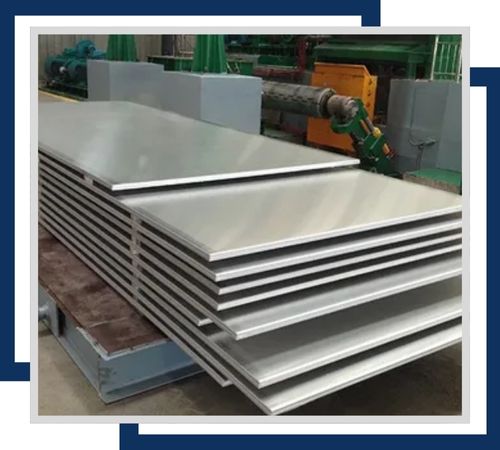

Stainless Steel 317 Hot Rolled Sheet and Plates provide excellent strength along with excellent corrosion resistance for high-temperature and aggressive chemical environments. They are used in industrial applications requiring durability and toughness.
Stainless Steel 317 Cold Rolled Sheet and Plates provide a smooth surface finish and precise dimensions, suitable for any applications in chemical, marine, pharmaceutical industries with high requirements of superior corrosion resistance and aesthetic quality.
Stainless Steel 317 Chequered Sheet and Plates are used in slip-resistant and long-lasting applications like flooring and stair treads. They are excellent corrosion-resistant materials, which can be used for both industrial and decorative purposes.
Stainless Steel 317 Perforated Sheet and Plates are used for filtration, ventilation, and architecture. It incorporates strength with the corrosion resistance capabilities of the plates along with useful perforations; hence, ideal for custom design and structural purposes in aggressive applications.
Stainless Steel 317 Shim Sheet and Plates are deployed for precision spacing and alignment within machinery and equipment. It shows high strength as well as resistant to corrosion features, thus sustaining stability and endurance in critical operations.

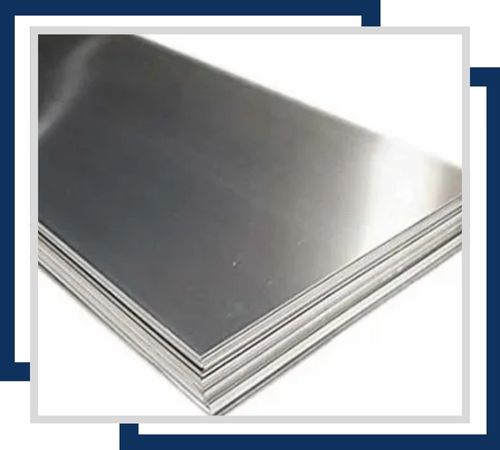

Stainless Steel 317 Polished Sheet and Plates have a very high-quality, reflective finish which is suitable for decorative and architectural applications. These have excellent corrosion resistance and are used in the environments where the appearance and durability are key requirements.
Stainless Steel 317 Sheets and Plates are commonly found in chemical processing plants, pulp and paper industries, and marine environments exposed to chlorides. They are used in refinery equipment, heat exchangers, and pressure vessels handling aggressive chemicals. Food and beverage industries apply them in brine tanks and processing systems. The pharmaceutical and medical sectors also benefit from their hygienic and corrosion-resistant qualities. Their superior resistance to pitting and crevice attack ensures long-lasting performance in tough industrial settings, providing reliability and cost savings over time.
