Chanchai Stainless is among the most recognized producers and distributors of high-quality stainless steel in Bangkok, Thailand, with proficiency in providing Stainless Steel 420 Plates and Sheets. Due to their corrosion resistance, toughness, and strength, these products are engineered to satisfy the demands of various industrial sectors. Our dedication to delivering excellent-quality materials in various sizes and finishes guarantees clients maximum value and satisfaction with each purchase. Supported by the promise of superior quality and service, Chanchai Stainless has become an esteemed name among stainless steel solutions in the region.
Stainless Steel 420 is a high-carbon martensitic stainless steel consisting of about 12–14% Chromium and about 0.15% Carbon. This mix offers excellent hardness, wear resistance, and reasonable corrosion resistance. The material can be heat-treated to provide high tensile strength and excellent thermal stability. SS 420 has good machinability, excellent polishing characteristics, and excellent abrasion resistance, making it fit for precision applications. Its mechanical performance provides reliability in stressed, worn, and corrosive media environments, achieving an equilibrium between strength and corrosion resistance to provide long-term industrial performance.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 420 | 0.15 max | 1.00 max | 1.00 max | 0.04 max | 0.03 max | min: 12.0 max: 14.0 | – |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) |
|---|---|---|---|---|
| Annealed * | 655 | 345 | 25 | 241 max |
| 399°F (204°C) | 1600 | 1360 | 12 | 444 |
| 600°F (316°C) | 1580 | 1365 | 14 | 444 |
| 800°F (427°C) | 1620 | 1420 | 10 | 461 |
| 1000°F (538°C) | 1305 | 1095 | 15 | 375 |
| 1099°F (593°C) | 1035 | 810 | 18 | 302 |
| 1202°F (650°C) | 895 | 680 | 20 | 262 |
Contact us to get a quick quote for your requirement.
These are stainless steel 420 hot rolled sheets that can offer excellent corrosion resistance and a durability that no other material could. They range from 3mm to 12mm thickness and are most suitable for any application that calls for high strength and good machinability.
Stainless Steel 420 cold rolled plates offer excellent corrosion resistance and a bright finish. These plates are available in thicknesses ranging from 0.5mm to 6mm and are used in precision applications where dimensional accuracy and fine surface finish are critical.

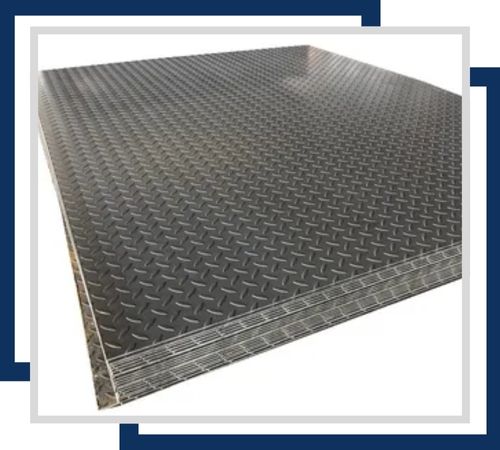

Stainless Steel 420 chequered plates combine excellent corrosion resistance with a textured surface for slip resistance. They are available in thicknesses from 2mm to 8mm and various patterns, and are widely used in flooring and safety applications.
Stainless Steel 420 perforated sheets are corrosion-resistant and have uniform holes for ventilation and aesthetics. They are available in thicknesses from 1mm to 5mm and are used in filtering and architectural applications.
Stainless Steel 420 shim sheets are very corrosion resistant and precise. Generally available in the thickness of 0.1mm to 1mm, these are used for precise spacing and alignment in many engineering and manufacturing applications.
Stainless Steel 420 polished plates have excellent corrosion resistance and a reflective finish. Available in thicknesses ranging from 1mm to 10mm, they are used for decorative and high-visibility applications where aesthetic quality and resistance to oxidation are critical.
Chanchai Stainless is highly concerned with the customer experience and delivers that with adequate documentation of its premium-quality Stainless Steel 420 Sheets and Plates. We deliver to our clients the necessary documents like a commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. These documents validate the genuineness and superior quality of our products and, therefore, ensure confidence in our valued customers. In addition, we provide our Stainless Steel 420 Sheets and Plates with different test certificates, including MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate, reflecting our customer-first approach and dedication to excellence.
Stainless Steel 420 Sheets and Plates find extensive application in industries requiring strength, durability, and wear resistance. Since they can be hardened, they find extensive use in making cutlery, surgical equipment, and precision instruments. The grade also possesses good polishing ability, and hence it finds excellent use in architectural applications through decorative finishes. SS 420 is applied for molds, dies, valves, and machine parts subject to mild corrosive environments in the industrial world. It is depended on by automobile industries for long-lasting components that must have high strength. Overall, its applicability makes Stainless Steel 420 a choice material for functional as well as cosmetic applications.
