Chanchai Stainless, located in Bangkok, Thailand, has built a solid reputation as a reliable manufacturer and supplier of top-notch stainless steel products, including Stainless Steel 310H Sheets and Plates, catering to clients in Dubai, UAE. Known for their outstanding quality, durability, and precision, the company delivers dependable solutions for industries that need exceptional heat resistance and strength. With state-of-the-art facilities and a talented workforce, Chanchai Stainless is committed to meeting international standards. Their Stainless Steel 310H Sheets and Plates are perfect for high-temperature settings, making them a go-to choice for construction, petrochemical, and power generation projects throughout the region.
These Stainless Steel 310H Sheets and Plates are crafted with a high content of chromium and nickel, while carbon boosts their strength at elevated temperatures. Typically, they contain around 25% chromium and 20% nickel, ensuring they resist oxidation, scaling, and corrosion even in harsh conditions. On the mechanical side, they boast a tensile strength of about 515 MPa and a yield strength of around 205 MPa, along with excellent creep resistance. Their durability and hardness make them ideal for high-temperature operations, while also offering good weldability and formability, ensuring a long service life in demanding industrial applications.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | ASTM, ASME and API |
| Thickness | : | 4.0mm – 100mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | : | SS 310H, (UNS S31009) |
| Grade | Fe | Cr | Ni | Mn | Si | C | P | S |
| SS 310H | – | 26.0-24.0 | 21.0-19.0 | 2.00 | 1.00 | 0.10 | – | 0.030 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | HardnessRockwell B (HR B) max | Hardness Brinell (HB) max |
| 310H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.
Stainless Steel 310H Hot Rolled Sheets are known for excellent high-temperature corrosion resistance. These are generally available in 2mm to 50mm thickness and widths up to 2000mm and are suitable for structural applications that require strength and durability.

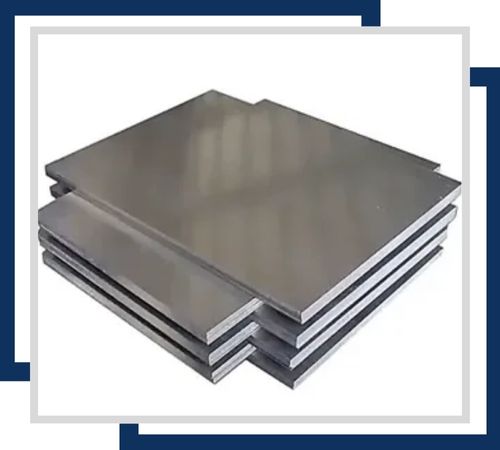

The plates are high in corrosion resistance and the surface finish is even. They come in the thickness range of 0.5mm to 6mm and 1500mm widths. They can be used in applications requiring precise dimensions and higher surface quality.
Stainless Steel 310H Chequered Plates have improved slip and high-temperature corrosion resistance. They are available in 3mm to 12mm in thickness and widths up to 1250mm. The product is excellent for flooring and high-traction applications.
Stainless Steel 310H Perforated Sheets offer high corrosion resistance with customized hole patterns for filtration and ventilation. The sheet sizes are generally available in 0.5mm to 6mm in thickness and up to 2000mm in width. It is used in industrial and architectural applications.
Stainless Steel 310H Shim Sheets are known for their excellent corrosion resistance at high temperatures and are used for spacing and alignment applications. The range of thickness offered is from 0.1mm to 2mm and sizes up to 1000mm x 2000mm, which offers flexibility in application.
The stainless steel 310H polished plates feature high-temperature corrosion resistance with a mirror-like finish. Available in thicknesses from 1mm to 25mm and widths up to 1500mm, these plates are used in decorative and high-visibility applications where aesthetic quality is important.
Chanchai Stainless promises its customers a hassle-free experience. We offer our customers all the documents they require for the purchase of high-quality Stainless Steel 310H Sheets and Plates. We offer the following necessary documents: commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports, thus making our products authentic and superior. In addition, our Stainless Steel 310H Sheets and Plates are provided with several test certificates like MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Such certificates highlight the commitment towards customers’ satisfaction as well as continued efforts toward the achievement of excellence in product quality.
Stainless Steel 310H Sheets and Plates find extensive use in sectors that require both strength and heat resistance. In the petrochemical and chemical processing industries, they are essential for equipment that faces corrosive and high-temperature environments. Power plants rely on them for boiler parts, heat exchangers, and furnace components. In construction and infrastructure projects, their durability and resistance to oxidation are highly valued. The food and pharmaceutical sectors also utilize them for hygienic and long-lasting surfaces. Their ability to perform under extreme conditions makes them crucial across a wide array of industrial applications in Dubai, UAE.
