Chanchai Stainless, a top-notch stainless steel manufacturer and supplier located in Bangkok, Thailand, specializes in high-quality Stainless Steel 17-4 PH Sheets and Plates designed for critical industrial applications. Renowned for their impressive blend of strength, toughness, and resistance to corrosion, these sheets and plates are perfect for challenging environments. SS 17-4 PH is a precipitation-hardening stainless steel that boasts outstanding mechanical properties, even under high temperatures. At Chanchai Stainless, we prioritize precision manufacturing to meet international standards, providing cost-effective and durable stainless steel solutions for various industries, including aerospace, petrochemical, marine, power generation, and general engineering.
Stainless Steel 17-4 PH Sheets and Plates are mainly made up of chromium (15–17.5%), nickel (3–5%), and copper (3–5%), with niobium added for precipitation hardening. Carefully controlled levels of manganese, silicon, carbon, and phosphorus improve toughness and workability. After undergoing heat treatment, these sheets and plates can achieve a tensile strength of up to 1310 MPa and a yield strength of around 1170 MPa. They also exhibit excellent hardness, fatigue resistance, and corrosion resistance in environments containing chloride. With good ductility and long-term stability, SS 17-4 PH Sheets and Plates are ideal for high-stress, high-performance applications.
| Grade | C | Mn | Si | P | S | Cr | Mo |
| SS 17-4PH | 0.07 max | 1.0 max | 1.0 max | .07 max | .03 max | 17.5 – 15.0 | .05 |
| Grade | Ultimate Tensile Strength, psi | Yield Strength, psi | Elongation | Rockwell Hardness |
| SS 17-4PH | 160,000 | 145,000 | 5% | C35 |
Contact us to get a quick quote for your requirement.

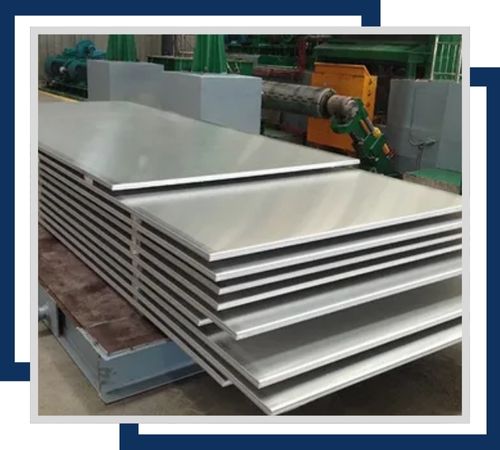

Stainless Steel 17-4 PH Hot Rolled Sheets and Plates is available in any size. Sizing usually takes place between 3mm-150mm thick. The characteristics of the SS 17-4 PH are that they show excellent strength with high hardness in them, making their application possible under heavy wear resistance application.
Stainless Steel 17-4 PH Cold Rolled Sheets are available in 0.3mm to 6mm in thickness and up to 1500mm in width with a smooth surface finish. These sheets have improved mechanical properties and dimensional accuracy, thus suitable for precision components. It retains good corrosion resistance, suitable for aerospace and pharmaceutical industries.
Stainless Steel 17-4 PH Chequered Plates are offered in thickness between 3mm and 12mm with sizes up to 2500mm x 1250mm. Patterns give this chequered plate a slip resistance surface, making it aptly suited for industrial floors and stair treads. Corrosion resistance is excellent due to this alloy and ensures that durable service in harsh conditions will be possible.
Stainless Steel 17-4 PH Perforated Plates are available in a range of thicknesses from 1mm to 10mm and various hole sizes and patterns. The perforated design of these plates is used for filtration, ventilation, and decorative applications. They maintain high strength and corrosion resistance, making them suitable for marine and chemical processing industries.
Stainless Steel 17-4 PH Shim Sheets are precision thin sheets ranging from 0.1mm to 5mm in thickness and available in various dimensions. These sheets are used for precise alignment and spacing in machinery and equipment. They offer excellent corrosion resistance and durability in challenging environments.
Stainless Steel 17-4 PH Polished Plates are made in the following thicknesses, from 1mm up to 8mm, and size up to 2500mm x 1250mm. The plates possess a reflective surface finish. Such plates are used for architectural and decorative purposes where the aesthetic value is important and where corrosion resistance is required. The plates offer high strength and durability under outdoor and corrosive conditions.
Chanchai Stainless provides a seamless experience to the customers by offering all documents for the high-quality Stainless Steel 17-4 PH Sheets and Plates. We provide necessary documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports in order to establish authenticity and quality of the product. All the Stainless Steel 17-4 PH Sheets and Plates have numerous test certificates that include MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates to ensure our dedication to customer satisfaction and continuous pursuit of product excellence.
Stainless Steel 17-4 PH Sheets and Plates find extensive use in industries that demand exceptional strength, durability, and corrosion resistance. In the aerospace sector, they are utilized in structural components, turbine blades, and fasteners. The petrochemical and chemical industries rely on them for equipment that faces corrosive chemicals and high-pressure conditions. The marine and offshore industries depend on their ability to withstand seawater environments for shipbuilding and platform components. Additionally, they are employed in power generation, refineries, and food processing.
