Chanchai Stainless, Bangkok, Thailand, is a reliable producer and seller of high-quality stainless steel products, such as Stainless Steel 310 and 310S sheet and plates. These products are used to perform exceptionally well in high-temperature and highly corrosive conditions. Chanchai Stainless supplies different thicknesses, sizes, and finishes to suit industries like petrochemical, power generation, furnace production, and thermal processing. With a focus on quality, accuracy, and customer satisfaction, Chanchai Stainless has established itself as a trusted supplier of stainless steel sheet and plate solutions across Thailand and Southeast Asia.
Stainless Steel 310/310S sheets and plates consist of 24–26% chromium and 19–22% nickel and are renowned for their exceptional oxidation and scaling resistance at elevated temperatures. The 310S composition contains a reduced carbon content, enhancing weldability and reducing the possibility of carbide precipitation. These materials exhibit high tensile strength (approximately 515–620 MPa), good creep resistance, and structural stability at temperatures around 1150°C. Their chemical structure and mechanical behavior render them suitable for conditions demanding heat resistance and corrosion protection.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | Fe | |
|---|---|---|---|---|---|---|---|---|
| 310 | 0.25 max | 2.0 max | 1.50 max | 0.045max | 0.03max | 24-26 | min: 8.0 max: 12.0 | Balance |
| 310S | 0.08 max | 2.00 max | 1.50 max | 0.045 | 0.03 | 24-26 | 19-22 | Balance |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 310 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
| 310S | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
Contact us to get a quick quote for your requirement.

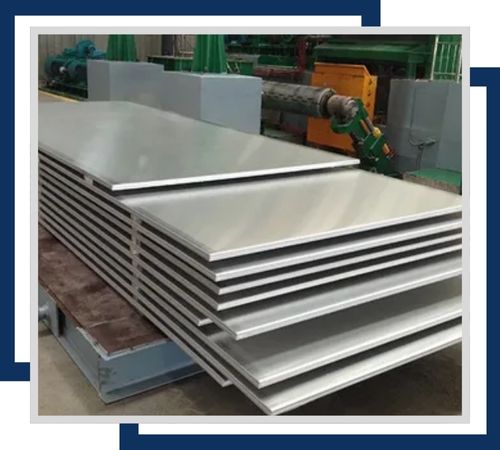

Hot-rolled sheets of Stainless Steel 310 are corrosion-resistant and resistant to corrosion and have high temperature stability. Available in sizes of 1.5 mm up to 25 mm thick, dimensions vary with customer requirements and offer robust performance in high-temperature applications.

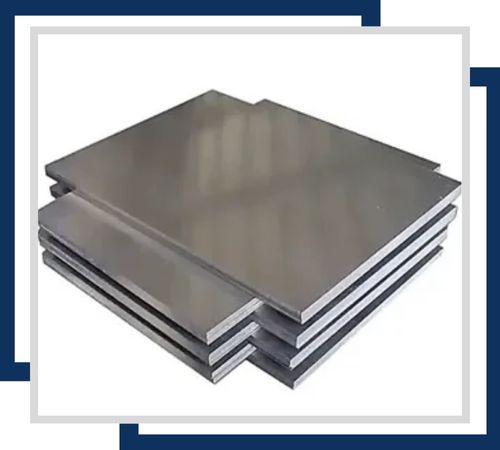

Available in gauges from 0.4 mm to 3 mm thickness, these have excellent corrosion resistance and improved surface finish. Suitable for applications which require tight tolerance and smoothness of the surfaces, these have precision and strength.

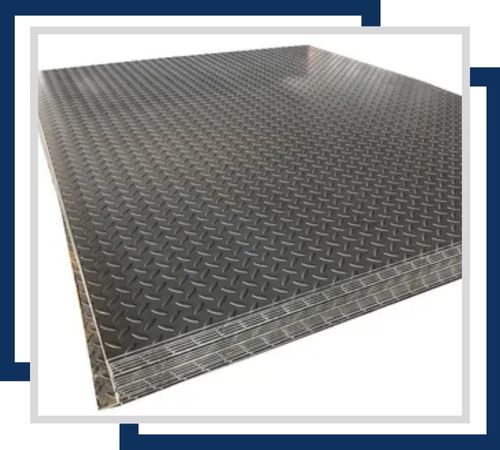

The Stainless Steel 310 chequered plates offer corrosion resistance with the added feature of slip resistance. The thickness varies from 2 mm to 12 mm. They are applied in floorings and industries for better traction.

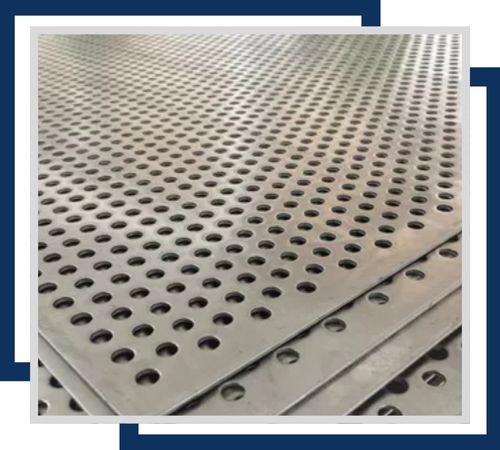

Stainless Steel 310 perforated sheets have available hole sizes and patterns that create aesthetic and practical benefits. Generally, thickness varies from 0.5 mm to 6 mm and finds application in filtration, ventilation, and decoration purposes.

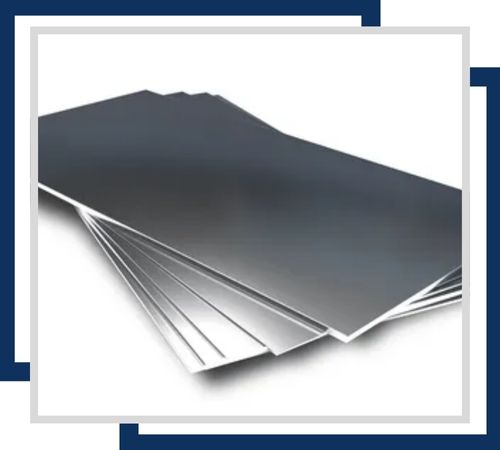

The shim sheets are made of stainless steel 310S and are available in thickness ranging from 0.1 mm to 1 mm. The thin sheets produce exact gaps or spaces in mechanical assemblies for adjustment.

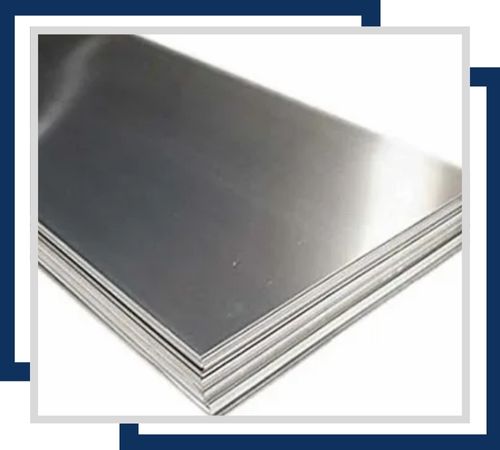

Stainless steel 310S polished plates combine corrosion resistance with high-quality finishes, both aesthetic and functional. They are available in 0.5 mm to 50 mm thickness and extensively used for decorative and high-end industrial applications.
Chanchai Stainless is providing a hassle-free experience to our esteemed customers by issuing a complete documentation set for all our high-grade Stainless Steel 310/310S Sheets and Plates. Documents such as Commercial Invoices, Packing Lists, Fumigation Certificates, Heat Treatment Charts, Quality Assurance Plans, NABL-approved Laboratory Test Reports accompany our products ensuring authenticity and superb quality. In addition, our Stainless Steel 310/310S Sheets and Plates are provided with a variety of test certificates, such as MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, which reflect our commitment to customer satisfaction and our continuous pursuit of product excellence.
Stainless Steel 310/310S sheet and plates are extensively used in industries that function under harsh heat and corrosive environments. Typical applications include furnace parts, heat exchangers, kilns, boiler fittings, and combustion chambers. They are also applied in petrochemical processing, thermal power plant, and food processing equipment where both high-temperature and sanitary conditions are essential. These materials provide long service life, scaling and thermal fatigue resistance, and consistent performance in harsh industrial environments, thus becoming the first choice for engineers and manufacturers across the globe.
