Home > Sheet and Plates > Stainless Steel 409 Sheet and Plates
Anucha Metals, a well-respected manufacturer and supplier located in Bangkok, Thailand, specializes in high-quality Stainless Steel 409 Sheets and Plates that are built to last, resist heat, and offer great value for money. These products are crafted to meet international standards and are commonly used in settings that require moderate corrosion resistance and outstanding oxidation stability. Stainless Steel 409 is a ferritic stainless steel grade that boasts excellent weldability, thermal stability, and the ability to withstand scaling at high temperatures, making it a fantastic option for automotive, petrochemical, and industrial uses. Anucha Metals offers these Stainless Steel 409 Sheets and Plates in a range of thicknesses, sizes, and specifications to meet various project needs.
The composition of Stainless Steel 409 Sheets and Plates primarily includes iron and chromium (10.5–11.75%), along with carefully controlled amounts of carbon, manganese, silicon, phosphorus, sulfur, and often titanium to enhance stability. This well-balanced mix ensures improved oxidation resistance, solid mechanical strength, and structural stability during thermal cycling. While it may not resist corrosion as well as higher-chromium stainless steels, it performs reliably in mild atmospheric and exhaust-related environments, striking a practical balance between cost, strength, and heat resistance.
Specifications< ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Element | Content |
|---|---|
| Carbon | 0.08 maximum |
| Manganese | 1.00 maximum |
| Phosphorus, maximum | 0.045 maximum |
| Sulfur, maximum | 0.045 maximum |
| Silicon | 1.00 maximum |
| Nickel | 0.5 |
| Chromium | 11.75 |
| Molybdenum | – |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Ti |
|---|---|---|---|---|---|---|---|---|---|
| SS 409 | 0.030 max | 0.5 max | 1 max | – | 0.020 max | 1 max | 0.040 max | 10.5 – 11.7 | 6*(%C+%N |
Contact us to get a quick quote for your requirement.

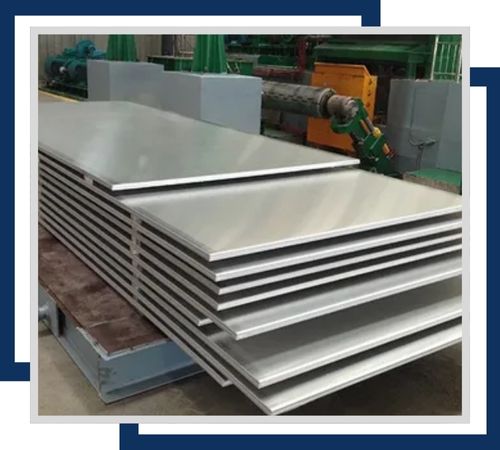

Stainless Steel 409 Hot Rolled Sheet and Plates provide good oxidation resistance and strength. These are applied in automotive exhaust systems, heat exchangers, and many more high-temperature applications that require durability.
Stainless Steel 409 Cold Rolled Sheet and Plates are available with a smooth, precise finish, which provides enhanced mechanical properties, applied in automobile parts, industrial applications, and structural components that require a clean, flat surface.
Stainless Steel 409 Chequered Sheet and Plates are applied where slip resistance and durability is required, including flooring and stair treads. It combines the strength with the corrosion resistance so it can be applied in either industrial or commercial applications.
Stainless Steel 409 Perforated Sheet and Plates are used in filtration, ventilation, and aesthetic applications. They are strong and resistant to corrosion, with functional perforations that allow for the design of various custom and structural applications in high-temperature conditions.

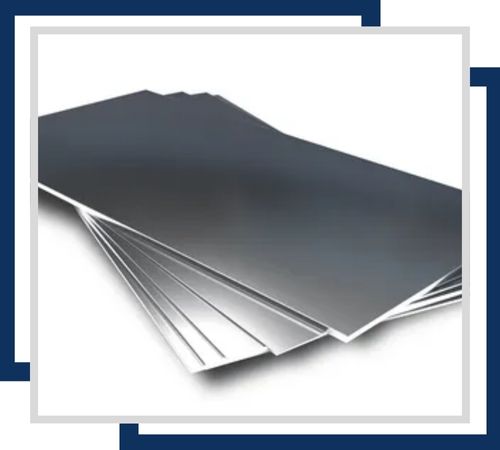

Stainless Steel 409 Shim Sheet and Plates can ensure the accuracy and rigidity to the machinery and structural parts. Owing to its properties of resistance to high temperature and corrosion, it is widely used in automobile and industrial applications where such accurate distance and alignment are a must.
The stainless steel 409 polished sheet and plates feature a bright, shiny surface suitable for decorative and architectural purposes. They exhibit good resistance to oxidation and corrosion and can be used for aesthetic as well as functional purposes in any environment.
Chanchai Stainless assures the best experience for customers by providing detailed documentation of our Stainless Steel 409 Sheets and Plates. We deliver the following crucial documents: Commercial Invoice, Packing List, Fumigation Certificate, Heat Treatment Chart, Quality Assurance Plan, and NABL-approved Lab Test Report. These documents authenticate the genuineness but at the same time highlight the better quality of our products that instill confidence and trust among our esteemed customers. Furthermore, we provide Stainless Steel 409 Sheets and Plates with test certificates like MTC in accordance with EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. Those certify our customer centric focus coupled with an unstoppable insistence on perfection on our products.
You’ll find Stainless Steel 409 Sheets and Plates in a variety of applications, including automotive exhaust systems, catalytic converter assemblies, furnace components, heat exchangers, industrial ducting, refinery equipment, and power plant structures. They’re perfect for parts that need to handle temperature changes, vibrations, or exposure to oxidizing conditions while keeping their structural integrity intact. With their combination of weldability, durability, and cost-effectiveness, Stainless Steel 409 Sheets and Plates are a go-to material for industries looking for dependable, high-temperature sheet and plate solutions.
