Stainless Steel U Tube in Bangkok, Thailand – Leading Manufacturer & Supplier

Home > Tubing > Stainless Steel U Tube

Stainless Steel U Tube Supplier in Pattaya, Thailand. Stainless Steel U Tubing Supplier in Chiang Mai, SS U Tubing in Nonthaburi, Stainless Steel U Tubing Manufacturer in Rayong, SS U Tubing and Tubes Stockist in Chonburi, Buy Stainless Steel U Tubing Price in Rayong, Stainless Steel U Tubing Suppliers in Bangkok, Thailand.

Yaman Steel stands out as a top manufacturer and supplier of Stainless Steel U Tubes in Mumbai, India. They provide high-performance tubing solutions that are all about efficiency, reliability, and durability. These Stainless Steel U Tubes are essential in heat exchangers, condensers, and boiler systems because they can handle high pressure, temperature changes, and harsh environments. Yaman Steel takes pride in ensuring that every U tube is crafted with precision and rigorously tested to meet international standards, delivering dependable tubing solutions that boost energy efficiency and long-lasting performance.

Buy Stainless Steel U Tubing in Nonthaburi, Stainless Steel U Tubing Supplier in Chiang Mai, Stainless Steel U Tubing in Rayong, SS U Tubing in Rayong, Get the Best Price from Stainless Steel U Tubing Manufacturers and Stockist in AL Ain, Check SS U Tubing Price Per kg in Bangkok, Thailand.

The makeup of Stainless Steel U Tubes includes chromium, nickel, and sometimes molybdenum, along with carefully controlled amounts of carbon, manganese, and silicon. This blend gives them fantastic corrosion resistance, oxidation resistance, and impressive strength, even at high temperatures. On the mechanical side, SS U Tubes boast excellent tensile strength, good toughness, and resistance to stress corrosion cracking. Their ability to maintain structural integrity under extreme conditions makes them perfect for critical and demanding industrial applications.

Stainless Steel U Tubing Specifications

Size Range	10 mm OD to 50.8 mm OD
Stainless Steel U Tube Outside Diameter	6.00 mm to 101.60 mm
Wall Thickness	0.70 mm to 8.00 mm
Length	up to 20 m (65.62 ft) Length & Customed Required Length
Stainless Steel Heat Exchanger Tube Dimenisons	ASTM, AISI, ASME/ ANSI, JIS, DIN, EN, GB, BS, SUS
Standard	ASTM A 213, A 268, A 269, A 789, Equivalent to ASME, EN, JIS Etc.

Stainless Steel U Tubing Chemical Composition

Stainless Steel U tube Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Stainless Steel U Tubing Mechanical Properties

Stainless Steel U tube Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose Stainless Steel U Tubing from Chanchai Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

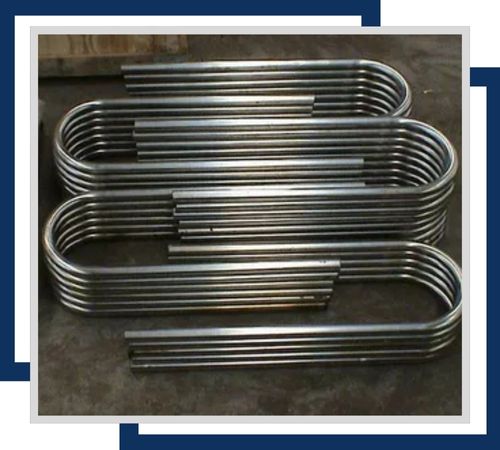

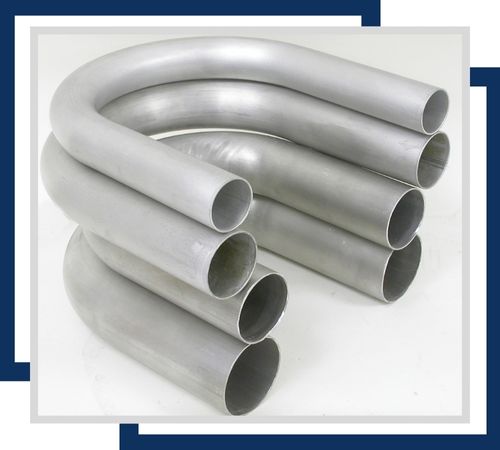

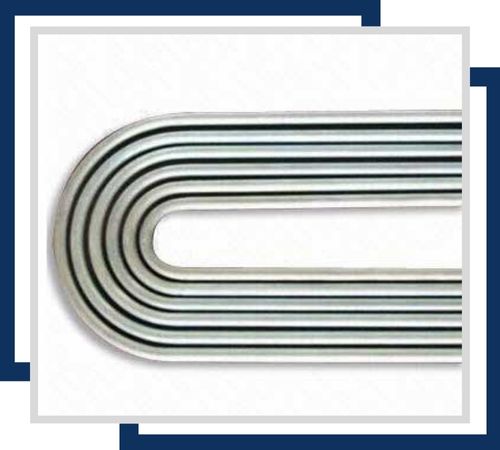

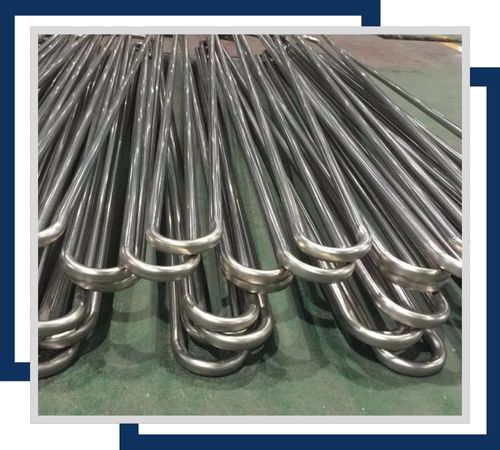

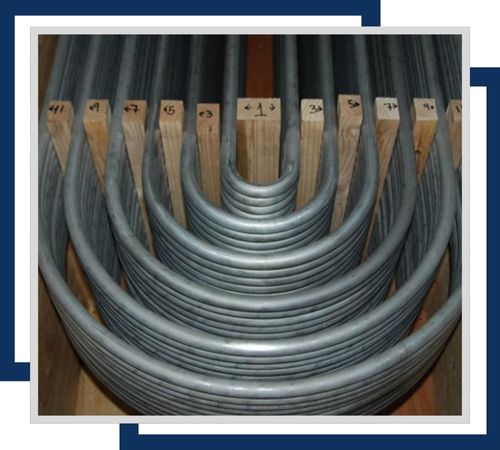

Types of Stainless Steel U Tubing

Client satisfaction by all means forms the top priority with regard to the quality of our Stainless Steel U Tubes. In pursuit of this objective, all our products are given stringent quality assurance regime, which includes hardness tests, chemical analysis by way of spectro analysis, positive material identification (PMI), flattening tests, micro and macro tests, pitting resistance tests, flaring tests and intergranular corrosion (IGC) tests.

Frequently Asked Questions

How Do I Maintain Stainless Steel U Tube?

To maintain Stainless Steel U Tubes, regularly clean them with mild soap and water to remove dirt and grime. Avoid harsh chemicals and abrasive cleaners. Inspect for signs of corrosion or damage and address any issues promptly.

Can Stainless Steel U Tube Be Welded?

Yes, Stainless Steel U Tubes can be welded using appropriate techniques like TIG or MIG welding. Ensure proper surface preparation and use compatible filler materials for optimal strength and corrosion resistance.

Does Stainless Steel U Tube Corrode?

Stainless Steel U Tubes are highly resistant to corrosion due to their chromium content. However, under extreme conditions like exposure to harsh chemicals or saltwater, corrosion can still occur over time.

Can Stainless Steel U Tube Be Used For Natural Gas?

Yes, Stainless Steel U Tubes can be used for natural gas applications. They offer excellent corrosion resistance and durability, making them suitable for handling natural gas in various industrial systems.

Stainless Steel U Tubing Price in Chiang Mai, AISI SS U Tubing Exporter in Rayong, Stainless Steel U Tubing Dealer In Nonthaburi, SS U Tubing Manufacturer in Pattaya, SS U Tubing Price Dealer in Chonburi, Stainless Steel U Tubing Stockist in Rayong, Stainless Steel U Tubing Best Price in Bangkok, Thailand.

Stainless Steel U Tubing Uses

You’ll find Stainless Steel U Tubes in various industries, including power generation, petrochemical, oil & gas, chemical processing, pharmaceuticals, and desalination plants. They play a vital role in heat exchangers, where efficient heat transfer is crucial, as well as in superheaters, condensers, and boilers. Thanks to their durability and corrosion resistance, they require minimal maintenance and have a long service life, even in tough environments. With Yaman Steel’s commitment to quality, their SS U Tubes are trusted worldwide for their outstanding performance and reliability.
