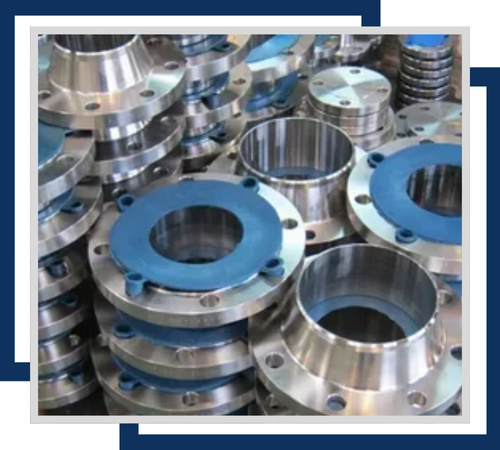

Anucha Metals, a top-notch manufacturer and supplier located in Bangkok, Thailand, specializes in high-quality Stainless Steel 316 Flanges that are designed to offer outstanding corrosion resistance, strength, and durability. Crafted to meet international standards, these flanges are perfect for piping systems that come into contact with corrosive chemicals, saltwater, or high-moisture environments where long-lasting reliability is essential. Stainless Steel 316 is an austenitic stainless steel grade that’s enriched with molybdenum, giving it superior resistance to pitting, crevice corrosion, and chloride-induced damage compared to 304 stainless steel. Anucha Metals provides a diverse selection of Stainless Steel 316 Flanges in various types, pressure classes, sizes, and specifications, catering to industries such as marine, chemical processing, oil & gas, pharmaceuticals, and food & beverage.
These flanges are primarily made up of iron, chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), along with carefully controlled amounts of carbon, manganese, silicon, phosphorus, and sulfur. This specific composition ensures excellent corrosion protection, high tensile strength, and remarkable durability in harsh and chloride-rich environments. The austenitic structure guarantees toughness across a broad temperature range, weldability, and compatibility with different piping systems, making these flanges suitable for both high-pressure and high-temperature applications.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| SS | 316 |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 316 Flanges Chanchai Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Chanchai Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.
Stainless 316 Steel Threaded Flanges are designed for systems that require quick assembly and disassembly. They come in sizes ranging from 1/2″ to 24″. The 316 stainless steel construction provides excellent corrosion resistance, ideal for plumbing and water treatment applications.
SS 316 Socket Weld Flanges are stainless steel fittings that allow pipes to be inserted into a recessed area before welding. They provide strong, leak-proof connections for small-diameter, high-pressure applications.
Stainless 316 Steel Lap Joint Flanges are used with stub end fittings and are suitable for systems requiring frequent dismantling. These flanges range in sizes from 1/2″ to 24″. The 316 stainless steel provides exceptional corrosion resistance, making them ideal for use in corrosive environments
Stainless Steel 316 Flanges are commonly found in marine pipelines, chemical plant systems, offshore platforms, water treatment facilities, oil refineries, pharmaceutical processing, and food-grade piping networks. They are perfect for securely connecting pipes, pumps, and valves in systems that face corrosive or high-stress conditions while ensuring leak-proof performance. With their blend of strength, corrosion resistance, and low maintenance needs, Stainless Steel 316 Flanges are the go-to choice for industries that require safe, reliable, and long-lasting piping connection solutions.
