Chanchai Stainless, a reputable manufacturer and supplier based in Bangkok, Thailand, is well-known for providing top-notch stainless steel products to markets around the world. As a distinguished Stainless Steel 304I Tubing Manufacturer in Dubai, UAE, the company prides itself on precision engineering, durability, and adherence to international quality standards in every item they produce. With state-of-the-art manufacturing facilities and a strong commitment to excellence, Chanchai Stainless serves a variety of industries that need dependable stainless steel tubing solutions. Their Stainless Steel 304I Tubing is highly regarded for its outstanding corrosion resistance, strength, and versatility, making it a perfect fit for demanding industrial and commercial applications.
The Stainless Steel 304I Tubing from Chanchai Stainless is primarily made up of chromium (18–20%) and nickel (8–10.5%), along with a low carbon content that boosts its corrosion resistance. It also includes trace amounts of manganese, silicon, and iron as the base element. This unique composition ensures excellent weldability, formability, and resistance to oxidation at elevated temperatures. On the mechanical side, Stainless Steel 304I Tubing boasts a tensile strength of around 515 MPa, a yield strength of 205 MPa, and impressive elongation properties. Its perfect blend of strength and flexibility makes it ideal for use in critical environments.
| STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN |
| SS 304L | S30400 | 1.4301 | SUS 304 | Z7CN18‐09 | 304S31 | 08Х18Н10 | X5CrNi18-10 |
| SS | 304 |
|---|---|
| Ni | 8 – 11 |
| Fe | Balance |
| Cr | 18 – 20 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.040 max |
| S | 0.030 max |
| N | – |
| Grade | 304 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 92 |
| Brinell (HB) max | 201 |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for our stainless steel 304I tubing through rigorous testing and certification processes. Each product undergoes extensive quality testing, including dimensional accuracy, tensile strength and corrosion resistance testing. We offer all relevant certifications, including material testing certificates (MTC) and compliance with international standards.
Stainless Steel 304I Seamless Tubing offers superior strength and corrosion resistance, ideal for high-pressure applications. Available in sizes ranging from 1/8” to 24” in diameter, it is crafted without any welded seams, ensuring durability and leak-proof performance.

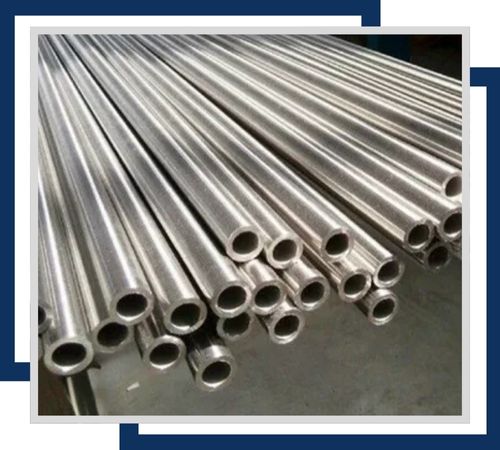

Stainless Steel 304I Welded Tubing provides excellent resistance to corrosion and is cost-effective for less demanding applications. Typically available in sizes from 1/8” to 48” in diameter, it features welded seams and is suitable for a wide range of industrial uses.

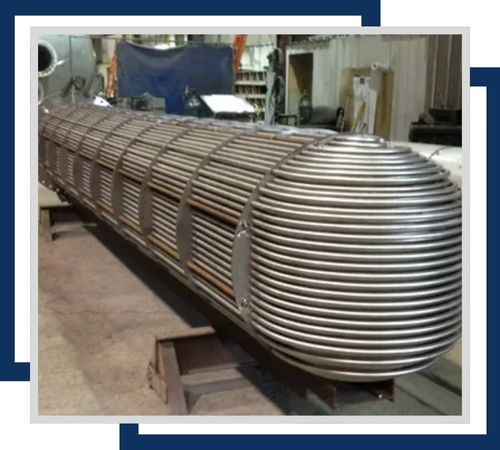

Stainless Steel 304I Heat Exchanger Tube is designed for optimal thermal transfer and corrosion resistance in various heat exchanger systems. These tubes are available in sizes from 1/4” to 2” in diameter and are perfect for applications requiring efficient heat conduction.

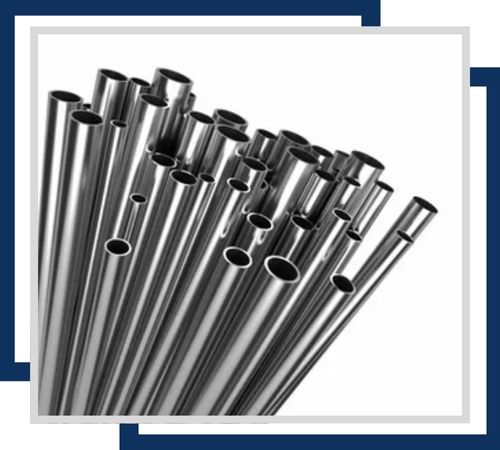

Stainless Steel 304I Instrumentation Tubing is precision-made for high-pressure, high-purity, and corrosive environments. Available in sizes from 1/16” to 2” in diameter, it is ideal for instrumentation and control systems.

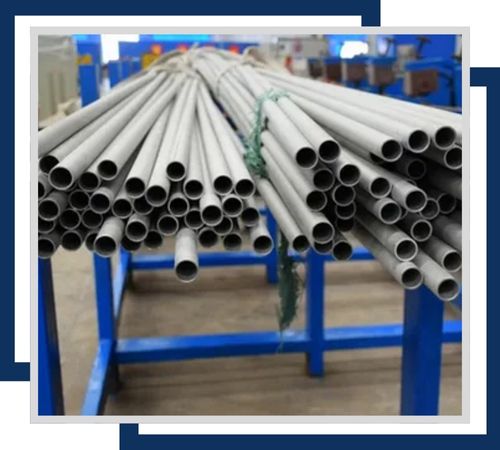

Stainless Steel 304I Boiler Tubes are engineered to withstand high temperatures and pressures in boiler applications. Ranging in sizes from 1/2” to 5” in diameter, they offer excellent resistance to oxidation and scaling.

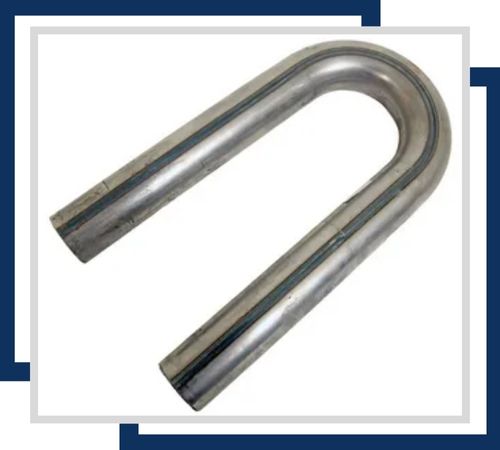

Stainless Steel 304I U-Tubes are bent into a U-shape, perfect for heat exchangers and boiler applications where space efficiency and corrosion resistance are crucial. Sizes typically range from 1/4” to 2” in diameter, providing reliable performance in compact systems.

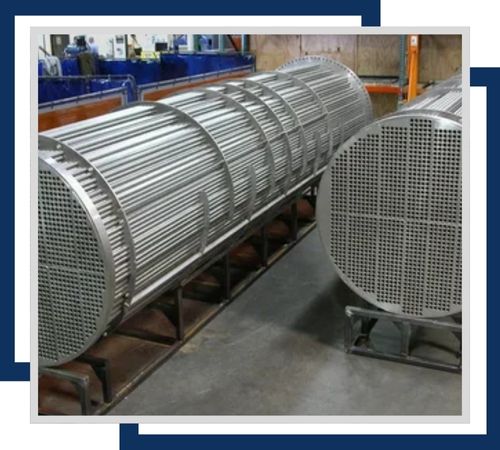

Stainless Steel 304I Condenser Tube is designed for high-efficiency heat exchange and corrosion resistance in condenser applications. These tubes come in sizes from 1/4” to 2” in diameter and are essential for maintaining system efficiency.

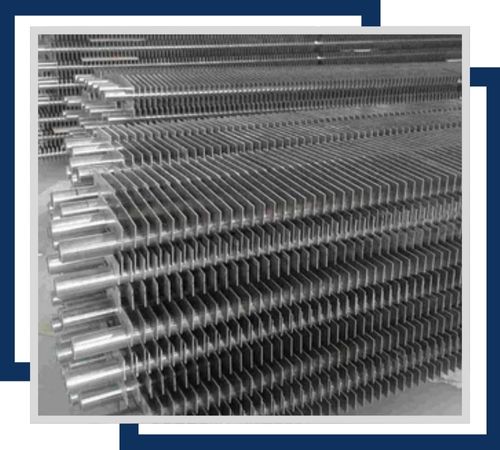

Stainless Steel 304I Fin Tubes feature extended surfaces (fins) to enhance heat transfer and corrosion resistance. Available in various diameters and fin configurations, they are ideal for applications needing increased heat dissipation.
Manufactured by Chanchai Stainless in Dubai, UAE, the Stainless Steel 304I Tubing is widely used across various industries. It finds applications in chemical processing, food and beverage sectors, pharmaceuticals, and oil and gas, thanks to its hygienic properties and resistance to corrosion. Additionally, it’s employed in heat exchangers, power plants, water treatment facilities, and construction projects due to its ability to endure harsh conditions. The automotive and aerospace industries also depend on its high strength-to-weight ratio. Its durability, low maintenance needs, and cost-effectiveness make it a go-to material for both structural and fluid transport applications.
