Chanchai Stainless, Thailand-based in Bangkok, is a reputable manufacturer and provider of high-quality stainless steel products. With quality and precision as their foundation, the company provides a wide range of stainless steel solutions designed for demanding uses. Among its best-selling superior products is Stainless Steel 309 Tubing, tailored for high-temperature applications where strength and resistance are key. Renowned for its reliability, durability, and conformity with global standards, this tubing is extensively applied in industries like aerospace, power generation, and chemical processing. With Chanchai Stainless, customer satisfaction is prioritized through prompt delivery and superior product performance.
Stainless Steel 309 is an austenitic stainless steel containing around 24–26% chromium and 13–15% nickel that offers excellent oxidation and corrosion resistance at high temperatures. It ensures consistent performance in conditions up to 2010°F (1100°C), which makes it suitable for high heat applications. The tubing has superb weldability, formability, and strength, as well as resistance against carburization and scaling. Its stress stability and thermal conductivity enable it to have long-term efficiency in extreme operating conditions. These properties guarantee long term performance, especially in those industries calling for toughness and durability in extreme temperatures.
| Specifications | ASTM A/ASME SA213 / A249 / A269 |
| Dimensions | ASTM, ASME and API |
| SS 309 Tubes Size | 10.29 OD (mm) – 762 OD (mm) |
| Thickness | 0.35 OD (mm) to 6.35 OD (mm) in thickness ranging from 0.1mm to 1.2mm. |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round Tubes, Custom Tubes, Square Tubes, Rectangular Tubes, “U” Shape, Hydraulic Tubes |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
| Grade | 309 | |
|---|---|---|
| min | max | |
| C | – | 0.20 |
| Mn | – | 2 |
| Si | – | 1 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 18.0 | 23.0 |
| Mo | – | – |
| Ni | 8.0 | 14.0 |
| N | – | – |
| Grade | 309 | |
|---|---|---|
| Tensile Strength (MPa) min | 620 | |
| Yield Strength 0.2% Proof (MPa) min | 310 | |
| Elongation (% in 50mm) min | 45 | |
| Hardness | Rockwell B (HR B) max | 85 |
| Brinell (HB) max | 169 | |
Contact us to get a quick quote for your requirement.
We provides quality tested Stainless Steel 309 Tubing. All tubing is subjected to dimensional, mechanical and chemical analysis and tested to all industry standards for performance and durability. Compliance certificates are issued along with the products, which assures the strength and reliability of the product for multiple applications in any industry.

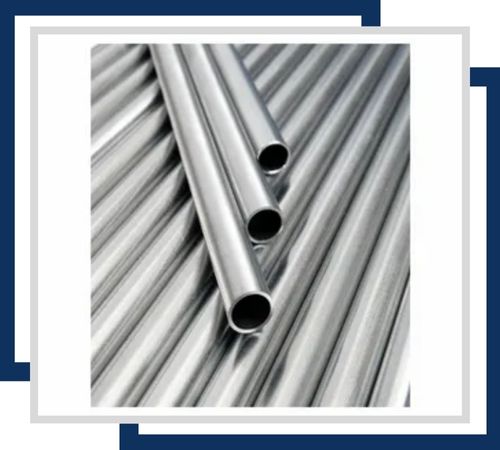

Stainless Steel 309 Seamless Tubing offers excellent corrosion resistance and is available in sizes ranging from 1/8″ to 12″ nominal diameter. It is ideal for high-temperature applications, with superior strength and durability. This tubing type ensures leak-free connections due to its seamless construction.

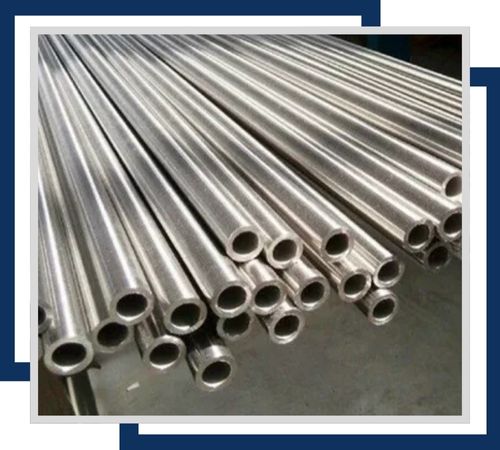

Stainless Steel 309 Welded Tubing provides good corrosion resistance and is available in sizes from 1/8″ to 24″ nominal diameter. It is produced by welding rolled strips of 309 stainless steel, making it cost-effective for various industrial applications. The welded joints are robust, ensuring long-term reliability.

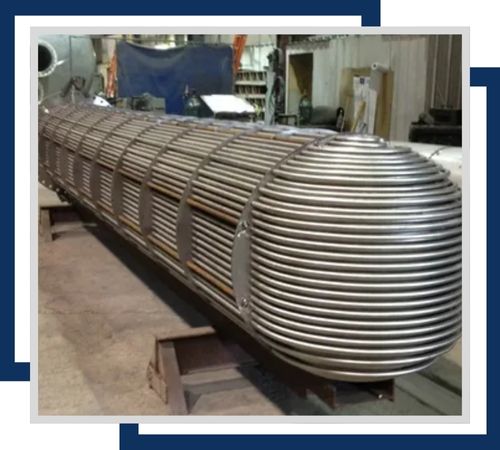

Stainless Steel 309 Heat Exchanger Tube excels in high-temperature environments and comes in sizes from 1/4″ to 12″ outer diameter. Its excellent corrosion resistance makes it suitable for chemical processing and power generation industries. This tubing ensures efficient heat transfer and durability in demanding conditions.

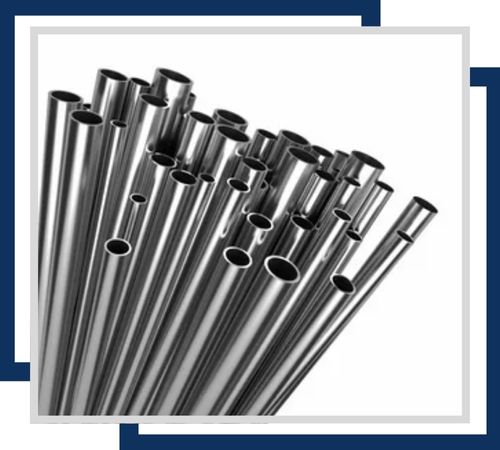

Stainless Steel 309 Instrumentation Tubing, available in sizes from 1/8″ to 1″ nominal diameter, offers superior corrosion resistance and precision. It is ideal for use in high-pressure and high-temperature instrumentation systems. The smooth internal surface ensures accurate and reliable fluid flow.

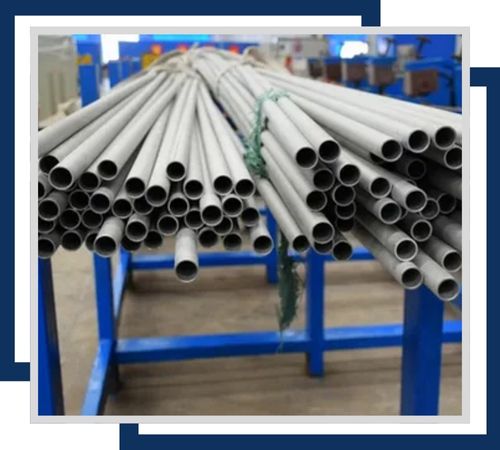

Stainless Steel 309 Boiler Tubes provide exceptional corrosion resistance and are available in sizes from 1/4″ to 5″ outer diameter. They are designed to withstand high temperatures and pressures in boiler systems. These tubes offer longevity and efficiency in steam generation and other heat-related processes.

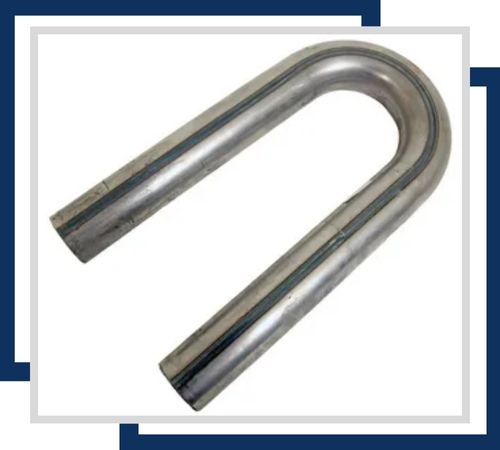

Stainless Steel 309 U-Tubes, with sizes ranging from 1/4″ to 3″ outer diameter, offer excellent corrosion resistance and are shaped for efficient heat exchange in compact spaces. They are widely used in heat exchangers, condensers, and economizers. Their U-shape design ensures optimal thermal performance.

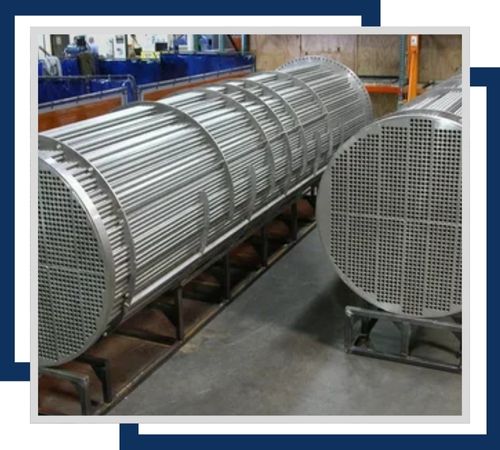

Stainless Steel 309 Condenser Tube provides high corrosion resistance and is available in sizes from 1/4″ to 2″ outer diameter. It is used in condensers for efficient heat transfer in various industrial processes. This tubing type ensures durability and performance in corrosive environments.

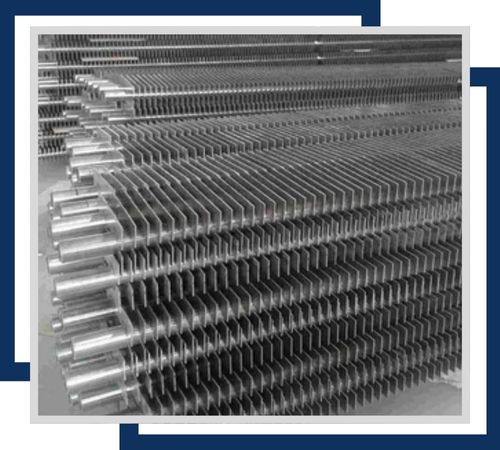

Stainless Steel 309 Fin Tubes, available in sizes from 1/4″ to 3″ outer diameter, offer excellent corrosion resistance and enhanced heat transfer efficiency. The finned design increases the surface area, making them ideal for heat exchangers and cooling systems. These tubes provide reliable performance in high-temperature applications.
Stainless Steel 309 Tubing is greatly appreciated in high-temperature resistant industries. It finds extensive application in industrial furnaces, heat exchangers, gas turbines, and chemical processing equipment because of its capability to withstand scaling and corrosion in harsh conditions. Power plants use it in boiler fittings and superheater tubes, whereas aerospace and marine industries utilize it for exhaust and structural applications of high strength. The auto industry also uses 309 tubing for exhaust systems that are under constant heat. Its reliability and versatility make it a must in critical, high-performance environments across the globe.
