Chanchai Stainless, which is headquartered in Bangkok, Thailand, is among the leading stainless steel manufacturers and suppliers. The firm is best known for providing top-quality stainless steel solutions with durability, corrosion resistance, and precision engineering. Among its specialized offerings, Stainless Steel 301 Tubing is notable for its strength, adaptability, and consistent performance across industries. With strong experience and a high dedication to customer satisfaction, Chanchai Stainless provides safe quality and punctual delivery. Its products play essential applications in construction, automotive, aerospace, and chemical industries, and thus the company is a reliable partner for contemporary industrial uses globally.
Stainless Steel 301 Tubing is an austenitic 17-19% chromium and 6-8% nickel alloy with minor contents of manganese, silicon, and carbon. The composition is superior for toughness, corrosion resistance, and durability under harsh conditions. The alloy has superior formability and ductility while providing superior strength. Mechanical properties comprise tensile strength of 520–720 MPa, yield strength of 205 MPa, and elongation of approximately 40%, which enables it to function well under high-stress applications. Its strength-to-oxidation resistance balance renders it extremely desirable for challenging industrial and engineering use.
Tubing Specification : ASTM A312, A358 / ASME SA312, SA358
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock
Thickness Range : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Outside Finish : 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
| Grade | C | Ma | Si | Ph | Su | Ch | Ni | Nr |
| SS 301LN | 0.03max | 2.00max | 1.00max | 0.045max | 0.015max | 16.5-18.5 | 6.0-8.0 | 0.07-0.20 |
| Element | Tensile strength (Outokumpu typical, cold rolled strip/sheet; EN 10002-1) | Yield strength (@strain 0.200 %) | Elastic modulus | Poisson’s ratio | Elongation at break (in 50 mm) |
| Metric | 765 MPa | 350 MPa | 193 GPa | 0.300 | 47% |
| Imperial | 111000 psi | 50800 psi | 27992 ksi | 0.300 | 47% |
Contact us to get a quick quote for your requirement.
Chanchai Stainless ensures the highest stainless steel 301 tubing standards through rigorous testing and certification programs. Extensive analyzes are performed on each formulation, including chemical composition analysis, mechanical property testing and validation theory. Certificates such as Mill Test Reports (MTR) and compliance with international standards have been issued to ensure product reliability and efficiency.
Known for its excellent corrosion resistance, Stainless Steel 301 Seamless Tubing is available in sizes ranging from 1/4 inch to 12 inches in diameter. It is typically used in structural applications due to its strength and durability.
Offering good corrosion resistance, Stainless Steel 301 Welded Tubing comes in sizes from 1/2 inch to 6 inches in diameter. It is produced by welding flat-rolled stainless steel and is commonly used in various industrial applications.

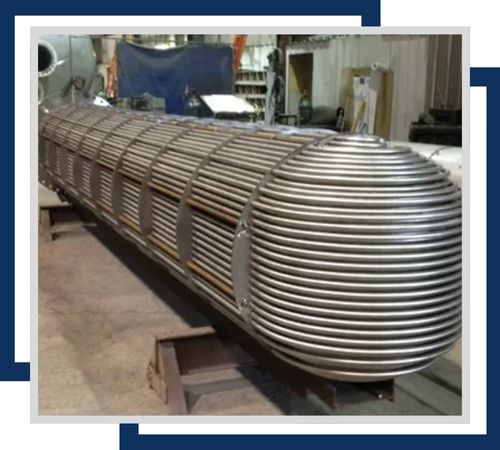

With robust corrosion resistance, Stainless Steel 301 Heat Exchanger Tubes are available in sizes from 1/4 inch to 2 inches in diameter. These tubes are designed for efficient heat transfer in heat exchangers.
This tubing provides high corrosion resistance and is available in diameters ranging from 1/8 inch to 2 inches. It is used in various instrumentation and control applications due to its precision and strength.
Featuring good corrosion resistance, Stainless Steel 301 Boiler Tubes come in sizes from 1 inch to 4 inches in diameter. They are utilized in boilers for steam and water applications due to their high thermal and mechanical properties.

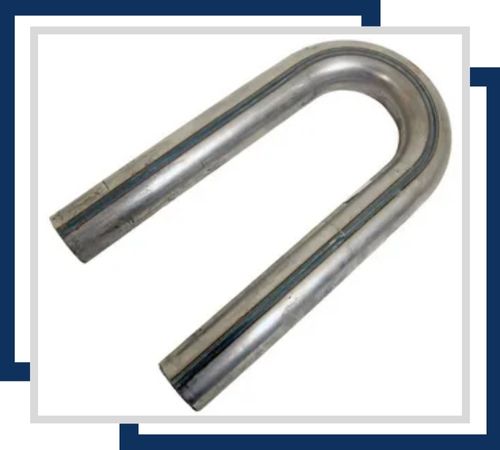

Known for their corrosion resistance, Stainless Steel 301 U-Tubes are typically available in sizes from 1/2 inch to 2 inches in diameter. They are often used in heat exchangers and other applications requiring curved tubing.
Offering strong corrosion resistance, Stainless Steel 301 Condenser Tubes are available in diameters from 1/2 inch to 4 inches. They are designed for use in condenser units where high thermal efficiency and resistance to corrosion are critical.

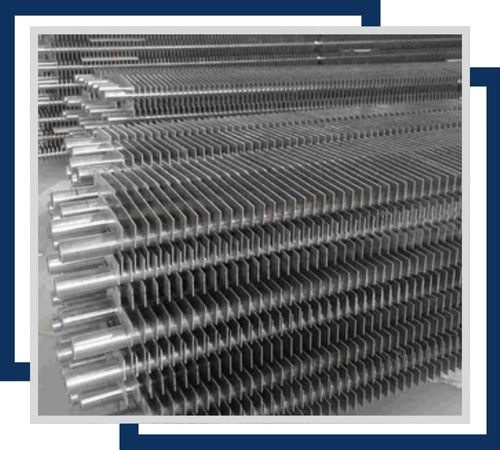

With excellent corrosion resistance, Stainless Steel 301 Fin Tubes are usually available in sizes from 1/2 inch to 2 inches in diameter. They are used in heat exchangers where increased surface area is required for heat transfer.
Stainless Steel 301 Tubing is esteemed for strength, corrosion resistance, and versatility, making it a necessity in various industries. In aerospace and automotive applications, it is used extensively for structural parts, exhaust systems, and springs because it sustains integrity under stress. The chemical and food processing industries depend upon it for heat exchangers, fasteners, and machinery that needs hygienic and resistant materials. Its resistance to oxidation provides consistent performance in high-temperature conditions. Further, 301 tubing is also used by industrial equipment producers where strength as well as wear resistance is required, and hence, it is a vital material for high-tech engineering applications.
