Renowned for producing best quality stainless steel products and selling them in Bangkok, Thailand. we built a great stronghold in this industry. All steel solutions are available with us such as Tubing made of Stainless Steel 317. The products are known for their extreme durability, resistance to corrosion and outstanding performance in different industries. One of Chanchai Stainless’s objectives is to offer highly quality products compliant with most of the world’s quality and precision standards to its customers.
Stainless steel 317 tubing is made primarily of steel, with high percentages of chromium (approximately 18-20%) and nickel (12-15%), and a molybdenum (3-4%) yield corrosion resistance is high It also contains trace amounts of elements such as manganese, silicon and carbon. The material exhibits excellent resistance to pitting, crevice corrosion, and high temperature oxidation. Mechanical properties include approximately 560 MPa tensile strength, 290 MPa yield strength, and 40% elongation. It provides excellent strength, formability and durability, making it ideal for harsh environments and chemical applications.
| ASTM A213 / ASME SA 213 | Standard Specification for SS TP 317L Seamless Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes |
| Shapes | ASME SA213 TP317L Round, Rectangular, Square, Hydraulic, Straight, “U” Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Surface Finish | BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish DIN 1.4438 Stainless Steel 317L Tubing or Custom Finish as per customer’s specification |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Relevant Standard | ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 |
| SS 317L | Maximum |
|---|---|
| Ni | 11 – 15 |
| C | 0.035 Maximum |
| Mn | 2 Maximum |
| P | 0.040 Maximum |
| S | 0.03 Maximum |
| Si | 1 Maximum |
| Cr | 18 – 20 |
| Mo | 3 – 4 |
| N | – |
| Element | AISI 317L |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Range | 1454 °C (2650 °F) |
| Tensile Stress | Psi – 75000 , MPa – 515 |
| Yield Stress (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Hardness (Brinell) |
Contact us to get a quick quote for your requirement.
We offers rigorous testing and certification of stainless steel 317 tubing to ensure quality and reliability. Each batch undergoes extensive testing, including chemical composition analysis, mechanical property testing and dimensional verification. Certificates of Compliance (CoC), Mill Test Reports (MTR), and other quality documents have been provided to also ensure transparency.
This tubing is produced without welds, offering superior strength and uniformity. It typically ranges from 1/8″ to 12″ in diameter. It is highly resistant to corrosion, particularly in chloride environments.
Manufactured by welding a strip of stainless steel, this tubing is suitable for applications requiring moderate strength and corrosion resistance. Sizes generally range from 1/4″ to 6″ in diameter. It provides good resistance to corrosive environments, especially those with chlorides.
Designed for use in heat exchangers, this tubing is available in diameters from 1/2″ to 2″ and offers excellent heat transfer properties. It is highly resistant to corrosion, making it ideal for aggressive chemical environments.

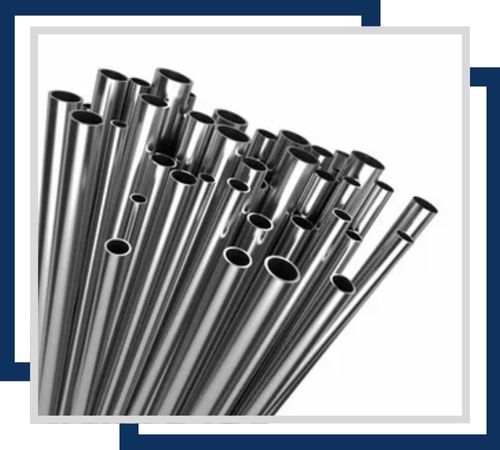

This tubing is used for precise measurement and control applications, with sizes typically ranging from 1/16″ to 2″ in diameter. It offers excellent resistance to corrosion and maintains integrity under high pressure.

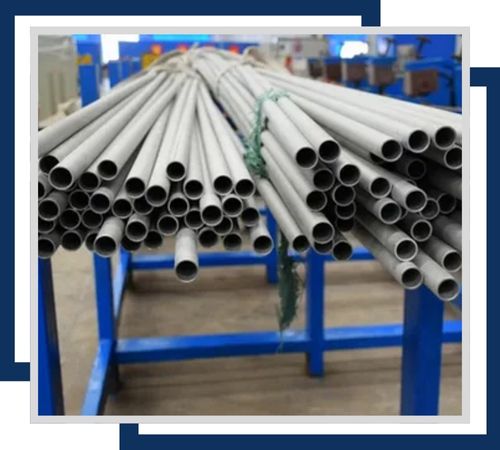

Engineered for high-temperature applications, these tubes usually come in diameters from 1/2″ to 4″. They provide robust resistance to oxidation and scaling, making them suitable for boiler systems.
U-Tubes are used in various heat exchanger and condenser applications, with sizes commonly from 1″ to 3″ in diameter. They are highly resistant to corrosion and can withstand the thermal stresses of heat exchange processes.

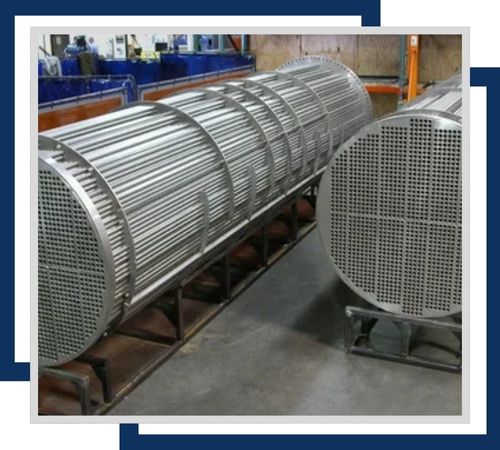

These tubes are specifically designed for condenser systems, with dimensions typically ranging from 1/2″ to 2″ in diameter. They offer excellent resistance to corrosion from steam and other condensate environments.
Used for heat transfer applications, these tubes are available in various diameters, often from 1/2″ to 2″. They feature enhanced surface area for improved heat exchange efficiency and are highly resistant to corrosion.
Stainless steel 317 tubing is widely used in applications requiring corrosion resistance and in high-temperature environments. Excellent resistance to pitting, crack corrosion, and chloride-induced stress corrosion makes it ideal for applications in the chemical, pharmaceutical, and electrical industries Typical applications are heat exchangers, pressure vessels , pipelines, and reactors. Moreover, there are applications in marine environment, pollution prevention and food processing. Its excellent durability and strength make it desirable for applications involving aggressive chemicals, high temperatures and harsh environmental conditions
