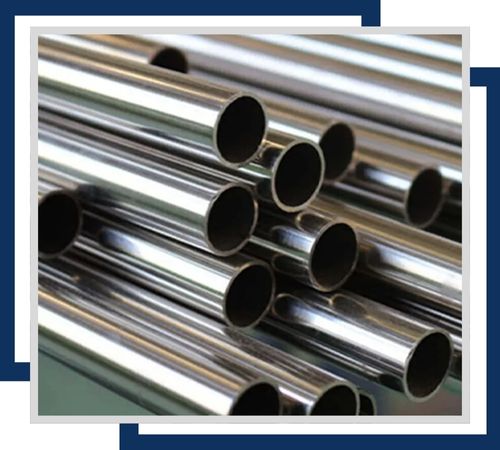

Chanchai Stainless, a trusted manufacturer and supplier in Bangkok, Thailand, offers Stainless Steel 409 Pipes designed for cost-effective durability. As ferritic stainless steel, grade 409 is known for its excellent weldability, oxidation resistance, and moderate corrosion resistance. These pipes can handle high-temperature services, making them reliable for automotive and industrial applications. Stainless Steel 409 Pipes blend mechanical stability with economic value, offering long service life in environments without extreme corrosion requirements. Chanchai Stainless maintains quality-driven production, making these pipes suitable for industries that value efficiency, strength, and affordability.
Stainless Steel 409 pipes contain chromium (10.5–11.75%), carbon (<0.08%), and trace amounts of manganese and silicon. With a tensile strength of around 380 MPa and yield strength about 170 MPa, they provide adequate strength for structural and automotive applications. The ferritic structure gives resistance against stress corrosion cracking and scaling up to 675°C. While they are not as corrosion-resistant as higher alloy grades, 409 offers excellent weldability and formability. These mechanical properties ensure stable performance, particularly in exhaust systems and areas where cost efficiency and durability are key.
| Item | Stainless Steel 409 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |
| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | CU | |
| 409 | Min | – | – | – | – | – | 10.5 | – | – | – |
| max | 0.03 | 1.00 | 1.00 | 0.04 | 0.02 | 11.7 | – | 0.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 409 | 380 | 170 | 20 | 88 | 0.5t |
Contact us to get a quick quote for your requirement.
We tests all kinds of stainless steel 409 piping with high emphasis on quality and performance. In addition, international standards such as ASTM and ASME are in place for any product. Even each batch in terms of machinery quality, dimensional accuracy, or corrosion resistance guarantees that the resultant pipes are going to be available with reliable output.
Stainless Steel 409 is a ferritic alloy known for its high resistance to oxidation and corrosion. Commonly used in automotive exhaust systems and industrial applications, it offers good strength and durability.
Stainless Steel 409 seamless pipe features high resistance to oxidation and corrosion, making it ideal for exhaust systems and industrial applications. Its seamless construction provides superior strength and reliability.
Stainless Steel 409 welded pipe combines high oxidation and corrosion resistance with durability. It’s commonly used in automotive exhaust systems and industrial applications, offering strength through its welded construction.
Stainless Steel 409 ERW (Electric Resistance Welded) pipe offers excellent resistance to corrosion and oxidation. It’s used in automotive and industrial applications, featuring strong welds and good mechanical properties.
Stainless Steel 409 EFW (Electric Fusion Welded) pipe provides excellent corrosion and oxidation resistance. Ideal for automotive and industrial uses, it features strong, uniform welds and high durability.
Stainless Steel 409 fabricated pipe is engineered for strength and durability, offering excellent resistance to oxidation and corrosion. It’s commonly used in customized applications, including exhaust systems and industrial components.
Chanchai Stainless is a leading supplier, and stockist of high-quality Stainless Steel 409 Pipes in Bangkok, Thailand. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
