Chanchai Stainless, a reputable manufacturer and supplier based in Bangkok, Thailand, has built a solid reputation for providing top-notch stainless steel products to markets around the world. Among their impressive lineup, the Stainless Steel 317 Pipes really shine due to their outstanding corrosion resistance and durability, making them perfect for tough industrial applications. With a strong foothold as a supplier in key international locations like Dubai, UAE, Chanchai Stainless is committed to maintaining high manufacturing standards, precision engineering, and competitive pricing. Their Stainless Steel 317 Pipes are crafted to meet the varied needs of clients in sectors such as construction, chemicals, and marine industries.
These pipes are primarily made of iron, featuring higher levels of chromium (18–20%) and nickel (11–15%), along with 3–4% molybdenum to boost corrosion resistance. They also include trace amounts of carbon, manganese, silicon, phosphorus, and sulfur. In terms of mechanical properties, these pipes boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and impressive elongation characteristics. They excel in resisting pitting and crevice corrosion, ensuring reliability even in harsh environments and high temperatures.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
317 | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
317 | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
We ensures high quality stainless steel 317 pipe through extensive testing and certification. Our pipe involves chemical composition analysis, mechanical testing and dimensional inspection. We offer comprehensive certificates of compliance, proving that international standards are met. This provides exceptional strength, corrosion and reliability, which promises all the requirements of the industry.
Stainless 317 Square Pipes are square-shaped pipes made from 317 stainless steel, offering superior corrosion resistance, durability, and strength, making them ideal for structural and industrial applications in harsh environments.

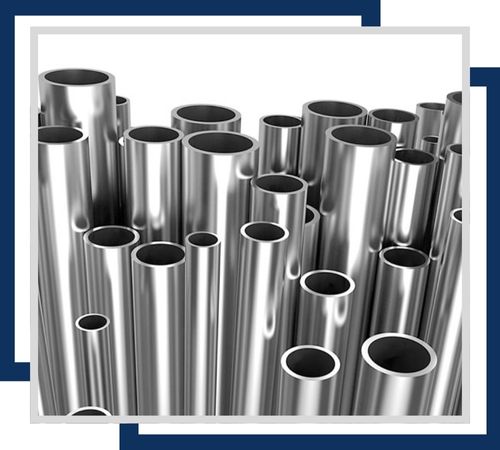

SS 317 Seamless Pipes are made from 317 stainless steel without welded seams, providing excellent corrosion resistance, strength, and durability, suitable for industrial applications and environments with high chemical exposure.

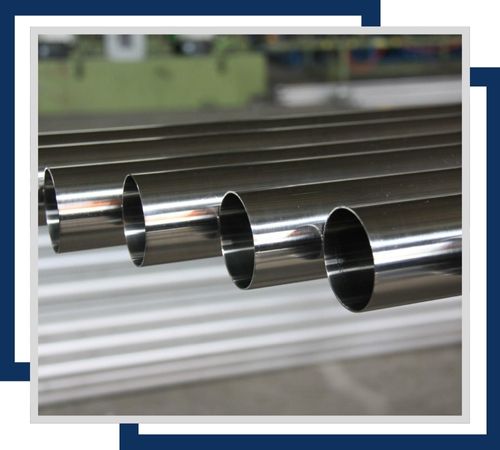

Stainless Steel 317 ERW Pipes are electric resistance welded pipes made from 317 stainless steel, offering high corrosion resistance, strength, and durability, ideal for industrial applications and environments exposed to harsh conditions.

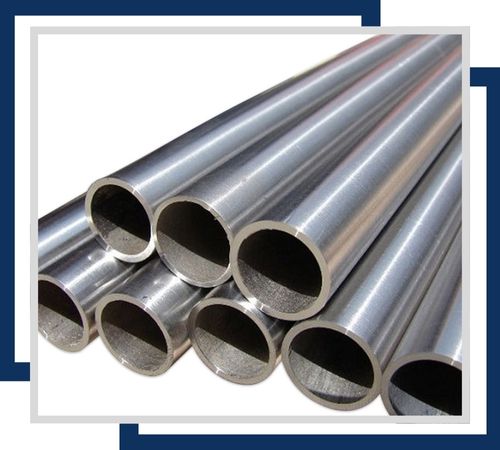

SS 317 LSAW pipe is longitudinally submerged arc welded pipes made of 317 stainless steel, which provide excellent corrosion resistance, high strength and durability for high pressure applications

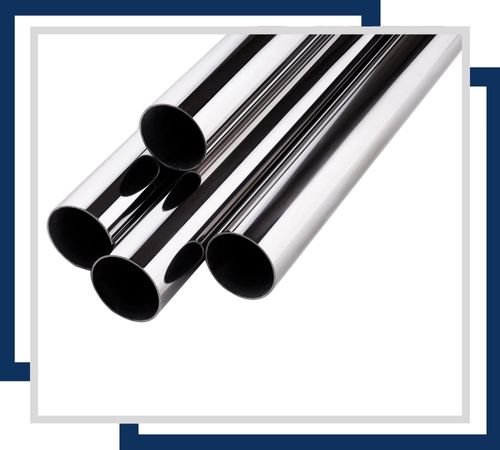

Stainless Steel 317 Round Pipes are cylindrical pipes made from 317 stainless steel, offering excellent corrosion resistance, durability, and strength, ideal for use in industrial applications and harsh environments.
Stainless Steel 317 Welded Pipes are pipes made from 317 stainless steel and joined by welding, providing excellent corrosion resistance, strength, and durability for various industrial and high-heat applications.
Stainless Steel 317 Pipes are extensively utilized in industries that demand resistance to chemical exposure and extreme temperatures. You’ll find them in chemical processing plants, food and beverage sectors, petrochemical facilities, and pharmaceutical manufacturing. Their robust nature makes them ideal for applications in heat exchangers, condensers, pulp and paper processing, and marine settings where saltwater exposure is common. Plus, their hygienic properties make them a safe choice for water treatment systems. These pipes promise long-lasting performance and help cut down on maintenance costs in critical environments.
