Chanchai Stainless, located in Bangkok, Thailand, has built a solid reputation as a reliable manufacturer and supplier of top-notch stainless steel products, providing solutions on a global scale with a strong foothold in the Middle East. As a prominent manufacturer of Stainless Steel 310 Nuts in Dubai, UAE, the company is committed to delivering high-quality fasteners that adhere to international standards. Renowned for their durability and resistance to corrosion, these nuts are designed to perform reliably even in tough conditions. With state-of-the-art production facilities and rigorous quality control measures, Chanchai Stainless ensures that their products meet the diverse needs of various industries, guaranteeing customer satisfaction across the globe.
Stainless Steel 310 Nuts are primarily made up of 25% chromium and 20% nickel, which give them outstanding resistance to oxidation and high temperatures. They feature a strong austenitic structure, providing exceptional toughness and strength, even in elevated conditions. Their mechanical properties include high tensile strength, excellent creep resistance, and durability in fluctuating thermal environments. These nuts maintain their hardness and stability, making them perfect for long-term use in applications that involve extreme heat, pressure, and exposure to corrosive environments.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of Stainless Steel Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard SS Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 SS Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | Stainless steel : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| Element | SS 310 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 217 |
Contact us to get a quick quote for your requirement.

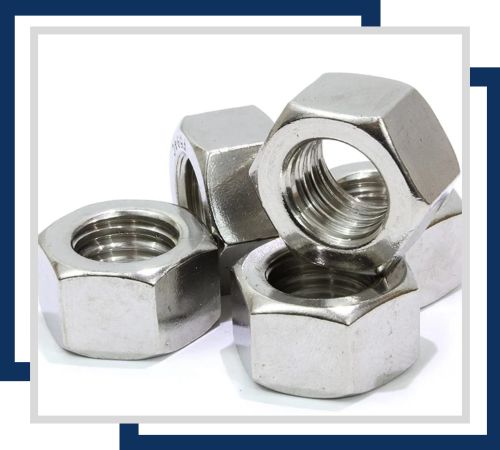

A corrosion-resistant product, Stainless Steel 310 nuts are available in sizes from M6 to M64. They are designed for high-temperature applications, providing excellent resistance to oxidation and durability in extreme heat environments.

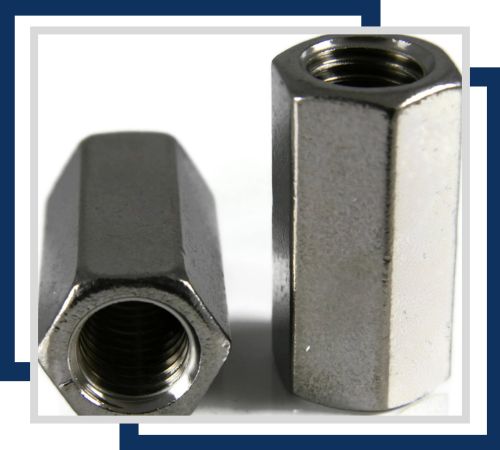

A corrosion-resistant product, Stainless Steel 310 coupling nuts, available in sizes from M6 to M36, connect two male threads securely. Their high-temperature resistance makes them ideal for use in furnace and heat exchanger applications.

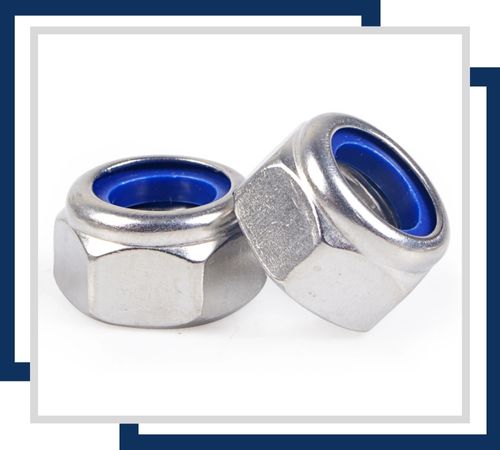

A corrosion-resistant product, Stainless Steel 310 nylon insert nuts, or lock nuts, come in sizes from M3 to M36. The nylon insert prevents loosening under vibration, and the stainless steel provides heat and oxidation resistance for high-temperature environments.

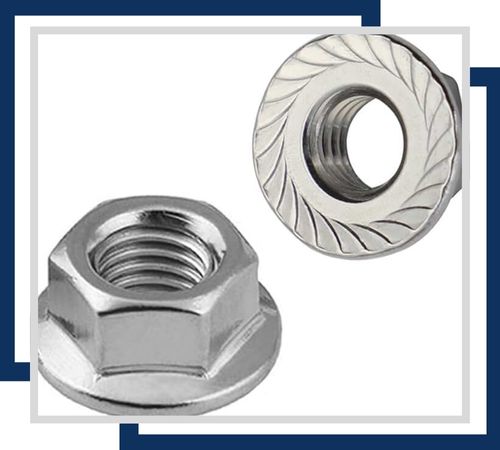

A corrosion-resistant product, Stainless Steel 310 flange hex nuts feature an integrated flange and are available in sizes from M5 to M20. They offer superior load distribution and stability in high-temperature applications, such as in industrial furnaces.
A corrosion-resistant product, Stainless Steel 310 heavy hex nuts are available in sizes from M10 to M48. Their increased thickness provides superior strength and durability, ideal for heavy-duty applications in extreme heat conditions.

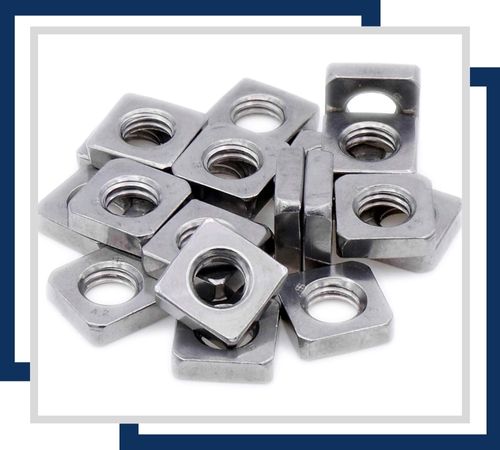

A corrosion-resistant product, Stainless Steel 310 square nuts come in sizes from M6 to M30. Their larger contact surface ensures secure fastening, making them suitable for high-temperature applications in industrial and aerospace settings.
We offer complete certification with our Stainless Steel 310 Nuts. We ensure that our products meet the highest quality standards. In the commercial package, our items consist of commercial invoices, packaging lists, fumigation certificates, heat treatment charts, quality assurance plans, and approved laboratory test reports. Further, for Stainless Steel 310 Nuts, we have varying test certificates as under, namely, MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third-Party Inspection Certificate. We intend to ensure 100% client satisfaction and confidence in our products by providing these detailed certifications.
These Stainless Steel 310 Nuts find extensive use in industries that require remarkable resistance to heat and oxidation. They’re commonly found in furnaces, heat exchangers, kilns, and boiler equipment, thanks to their ability to endure continuous high-temperature operations. In the petrochemical and power generation sectors, these nuts ensure secure fastening under extreme pressure and thermal stress. Moreover, they are utilized in chemical processing plants, cement industries, and food processing units, where both corrosion resistance and strength are crucial. Their versatility makes them an excellent choice for critical, high-performance applications.
