Anucha Metals is a professional Stainless Steel 304H Nuts manufacturer in Bangkok, Thailand, providing nuts that provide high temperature strength and long creep life. SS 304H is a carbon-enriched form of 304, which is suitable for high-pressure and high-temperature applications. We are manufacturing a full range of hex nuts, lock nuts, and heavy-duty nuts for ASME, ASTM, and DIN standards. With greater mechanical strength and improved heat resistance, our 304H nuts are intended for petrochemical, thermal power, and heat exchanger applications.
SS 304H has 18–20% chromium, 8–11% nickel, and a slightly higher carbon content (~0.04–0.10%) than the normal 304. It gives higher tensile strength (~585 MPa) and creep resistance at higher temperatures. It is mechanically stable up to 870°C and possesses excellent weldability as well as oxidation resistance. It is non-magnetic in the annealed state and preferred for heavy-duty usage.
| Specifications | DIN, ISO ,JIS ,GB, IS, BS, ASTM |
| Standard | ASTM A193 / A194, ASME SA193 / SA194 |
| Size | M2 – M100 |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions Standard | DIN: DIN931, 933, 934, 7991, 976, 125 ISO: ISO 4033, 4032 ASME B18.5, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.

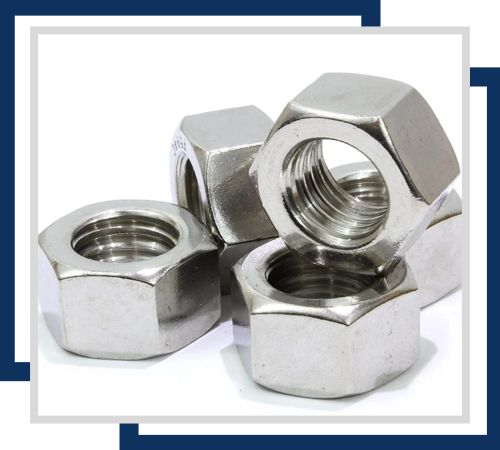

Stainless Steel 304H Nuts Designed for high-stress environments, these nuts provide excellent corrosion resistance and durability. Available in sizes ranging from M6 to M36, they are ideal for chemical, petrochemical, and power generation applications.

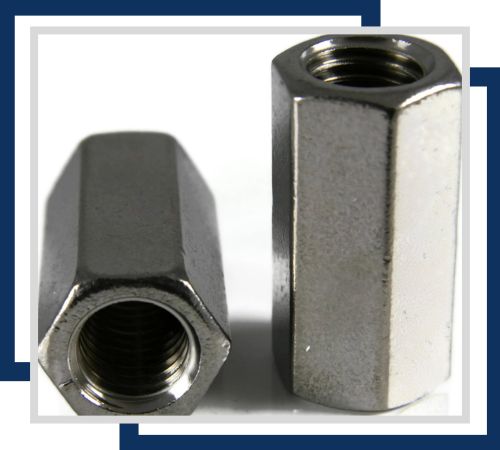

Stainless Steel 304H Coupling Nuts Ideal for joining threaded rods, these coupling nuts offer high strength and temperature resistance. Available in sizes from M6 to M36, they are suitable for industrial applications such as piping systems and machinery assemblies.

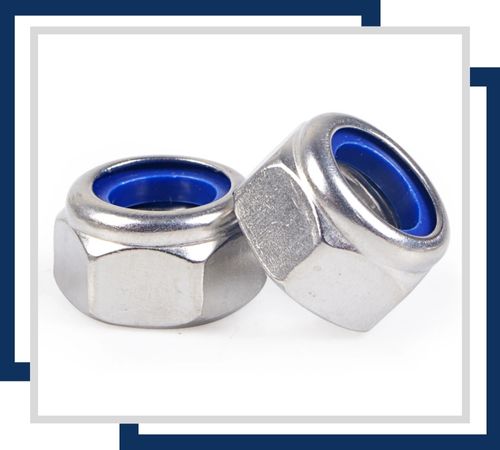

These nuts feature a nylon insert for secure fastening and vibration resistance. Available in sizes from M6 to M24, they ensure a tight fit and prevent loosening, making them perfect for machinery and automotive applications.

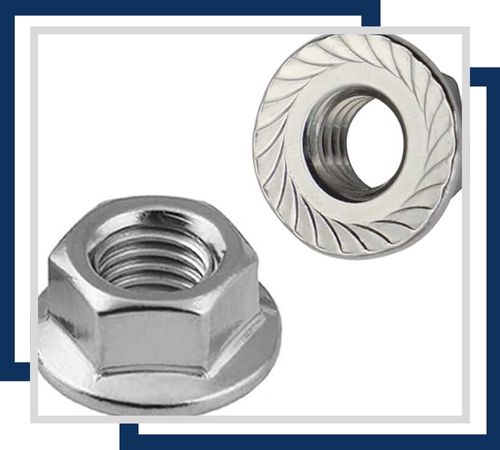

Featuring integrated flanges for extra support, these SS 304H nuts provide enhanced load distribution and stability. Available in sizes from M6 to M24, they are ideal for use in heavy-duty equipment and construction projects.
Offering superior strength for heavy-duty applications, these SS 304H nuts are designed for high-pressure and high-temperature environments. Available in sizes from M6 to M36, they are perfect for boilers and heat exchangers.
These square nuts provide a large surface area for effective torque application. Available in sizes from M6 to M24, they are ideal for secure fastening in tight spaces within industrial machinery and structural applications.
Chanchai Stainless is committed to providing high-quality Stainless Steel 304H Nuts with consistent performance through a wide range of tests. These include hardness testing, spectro analysis, PMI, and flaring tests. We also do micro and macro tests, pitting resistance tests, and IGC tests to ensure the excellent quality of every product we deliver. Along with the above-mentioned stringent testing processes, we are giving full documentation like commercial invoices and detailed packing lists with net and gross weights, box numbers, and labels. Moreover, our legalized or attested Certificate of Origin and Third-Party Inspection Certificates make sure that there is total assurance of our commitment towards delivering superlative products and a guaranty of unforgettable customer satisfaction.
SS 304H nuts are employed in high-temperature steam piping, boilers, refineries, pressure vessels, and nuclear reactors. They are utilized in heat exchangers, thermal plants, and chemical processing where high service temperatures are experienced. Their high creep strength provides long life in hard usage. 304H is commonly specified where ASME Code design stress requirements are to be fulfilled. These nuts can be coupled with 304H bolts and studs in high-temperature critical fastening systems.
