Chanchai Stainless is a reputable manufacturer and supplier in Bangkok, Thailand, with a comprehensive line of stainless steel products, including high-grade Stainless Steel 316Ti Fasteners. With emphasis on precision, ruggedness, and compliance with international standards, Chanchai Stainless provides fastening solutions that suit the demands of industries working in corrosive and high-temperature settings. The organization is recognized for its good service, competitive rates, and customer-centric approach. Chanchai Stainless has built a strong reputation both nationally and internationally as a stainless steel fasteners provider that is reliable.
Stainless Steel 316Ti Fasteners are fabricated using a titanium-stabilized form of 316 stainless steel, with a composition of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and titanium in addition to that. The titanium improves the alloy’s resistance to intergranular corrosion, particularly following welding or thermal exposure. Such fasteners usually provide tensile properties of approximately 515 MPa and yield strength of 205 MPa, plus good ductility, toughness, and corrosion resistance. They are especially applicable for use in thermal cycling and harsh chemical environments.
| Standard | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Bolt / Screw Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size | M1.6 – M12 |
| Self Tapping Screw Size | No.2 – No. 14 |
| Length | 3 mm to 200 mm |
| Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Corrosion-resistant and highly durable, Stainless Steel 316Ti Bolts are ideal for high-temperature and marine applications. Available in sizes ranging from M6 to M30, with lengths up to 300 mm. They offer excellent resistance to pitting and crevice corrosion.

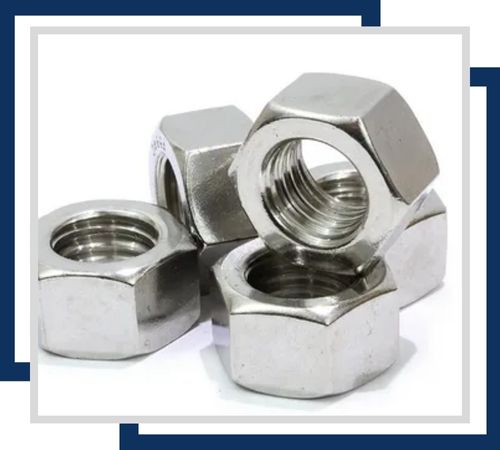

SS 316Ti Nuts are designed for exceptional corrosion resistance, especially in chloride environments. Typically available in sizes from M6 to M30, with various thread pitches. They complement 316Ti bolts and are used in high-temperature and aggressive environments.

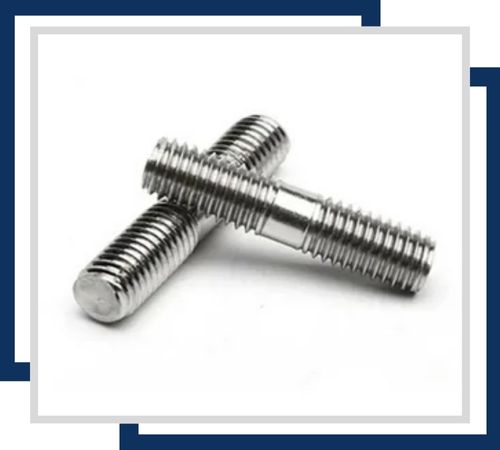

Offering superior resistance to corrosion and high strength, these Stud Bolts come in sizes from M6 to M30, with lengths ranging from 50 mm to 300 mm. Ideal for use in severe service conditions where high tensile strength is needed.

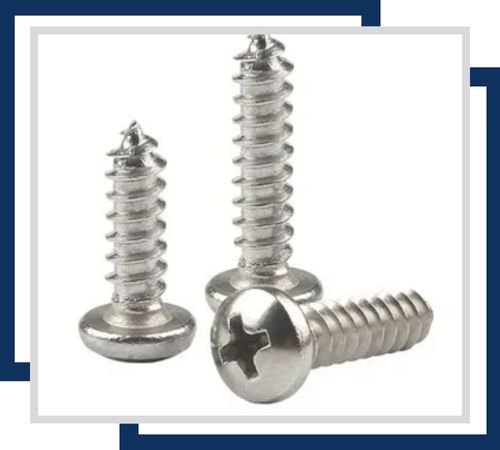

Known for their corrosion resistance, these screws are used in marine and industrial applications. Available in sizes from M2 to M20, with lengths up to 200 mm. They provide reliable performance in environments exposed to chemicals and saltwater.

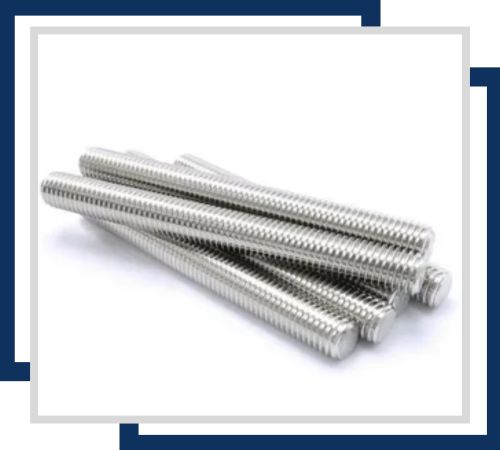

Corrosion-resistant and high-strength, these rods are available in diameters from M6 to M30 and lengths up to 3 meters. They are used in construction and industrial applications where resistance to harsh environments is critical.
Offering excellent resistance to corrosion, these washers are available in sizes from M6 to M30. They ensure even load distribution and prevent damage to surfaces. It is ideal for use with 316Ti bolts and nuts in aggressive environments.
Our expertise in packaging Stainless Steel 316Ti fasteners carefully in Bangkok and Thailand. While considering wooden boxes, pallets, and eco-friendly packing materials, we are very meticulous in using high-quality standards industrial packaging material. The procedure is carried out in a dust-free environment to maintain cleanliness from dirt, dust, or any other foreign materials that compromise product quality. These fasteners are prepared for shipping once careful attention has been paid to all details. They reach customers in excellent condition, regardless of distance.
Stainless Steel 316Ti Fasteners are applied in various industries requiring resistance to heat, corrosion, and mechanical stress. Typical applications include flue gas cleaning systems, pressure vessels, heat exchangers, chemical processing equipment, and marine environments. They are best suited for fastening parts to be subjected to hot temperatures and aggressive chemicals such as chlorides and acid solutions. Applications like oil and gas, petrochemical, pharmaceutical, food processing, and power generation depend on these fasteners for their longevity, weld stability, and great resistance to pitting corrosion, crevice corrosion, and stress corrosion cracking.
