Chanchai Stainless in Bangkok, Thailand, is a trusted producer and supplier of superior quality stainless steel fasteners, including Stainless Steel 310S fasteners. Because of their superior resistance to high temperature and oxidation, these fasteners can be used in harsh industrial conditions. Chanchai Stainless has a very broad spectrum of sizes and types available for industries like power generation, petrochemical, furnace production, and heat treatment. With high emphasis on quality, precision manufacturing, and timely delivery, the company is a go-to source of stainless steel fasteners in Thailand and Southeast Asia.
Fasteners made of Stainless Steel 310S contain about 24–26% chromium and 19–22% nickel, which grant excellent resistance to scaling and oxidation in conditions of high temperatures. Low carbon content enhances weldability and minimizes carbide precipitation, with a resultant increase in durability and strength. These fasteners have tensile strengths ranging from 515 to 620 MPa and remain mechanically strong up to 1150°C. Due to their chemical composition and mechanical properties, they are best suited for application under severe conditions where resistance to heat and corrosion protection are both essential.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of Stainless Steel Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard SS Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 SS Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | Stainless steel : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
SS 310S |
0.08 max |
2.0 max |
1.00 max |
0.045 max |
0.030 max |
24.00 – 26.00 |
0.75 max |
19.00 – 21.00 |
53.095 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.

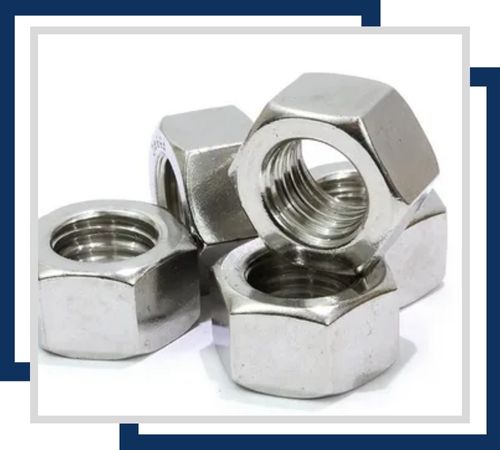

Corrosion-resistant Stainless Steel 310S Nuts provide excellent resistance to high temperatures and oxidation. They are available in various sizes, typically from M6 to M64, with dimensions that conform to international standards like DIN and ANSI.

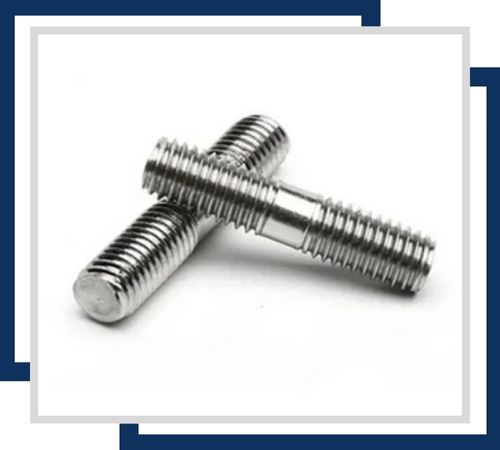

Offering superior corrosion resistance, Stainless Steel 310S Stud Bolts are designed for high-temperature applications. Sizes range from M6 to M64, varying from 20mm to 1000mm. They are suitable for use in extreme environments, ensuring durability and strength.

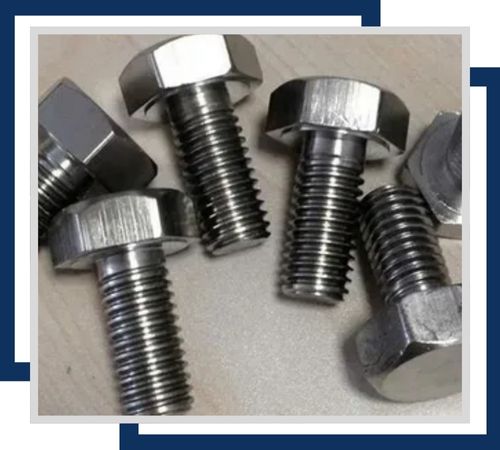

These corrosion-resistant Stainless Steel 310S Bolts are ideal for high-temperature applications. Available in sizes from M6 to M64, they meet standards such as DIN 931 and ANSI. Their design ensures reliable performance under extreme conditions.

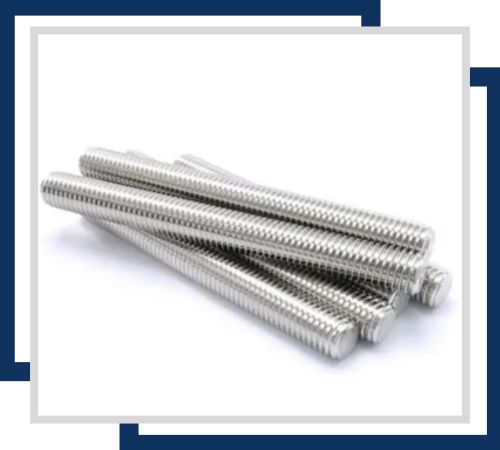

Stainless Steel 310S threaded rods offer excellent corrosion and heat resistance. Common sizes range from M6 to M64, varying from 50mm to 1000mm. They are used in applications requiring high strength and durability.
Corrosion-resistant Stainless Steel 310S screws are designed for high-temperature use. They are available in sizes from M2 to M30, varying lengths depending on the application. These screws provide excellent strength and reliability under harsh conditions.
Featuring superior corrosion resistance, Stainless Steel 310S washers distribute load and prevent loosening. Available in sizes from M6 to M64, they comply with standards such as DIN 125 and ANSI, ensuring reliability in high-temperature environments.
We have taken immense care in packaging these SS 310S Fasteners while sending them to the customers so that the products reach them in the best condition. Our fasteners are packed in wooden boxes and covered with plastic to ensure that they are not damaged during transportation. Every package is clearly labeled for easy and prompt delivery. We offer domestic and international shipping using courier services or air freight, depending on the destination. All shipments are fully insured and include a packing list, commercial invoice and tracking information. Our goal is to ensure your order gets to you in the perfect condition with on-time delivery along with customized packaging and expedited shipping options that cater to your needs.
Stainless Steel 310S fasteners find extensive application where they need to withstand arduous heat and corrosive environments. Typical industries are furnace construction, heat exchanger, boilers, petrochemical plants, and power plants. The fasteners find application in holding components subject to thermal cycling, oxidation, and mechanical load. The capacity of these fasteners to withstand high temperature and corrosion while retaining strength guarantees efficient, long-lasting performance in such critical industrial applications where efficiency and safety are the top priority.
