Chanchai Stainless, a Bangkok-based company in Thailand, is a reliable producer and supplier of top-quality stainless steel fittings, among them Stainless Steel 316H Forged Fittings. Renowned for top-grade workmanship and rigorous compliance with international standards, Chanchai Stainless offers long-lasting and dependable fittings suitable for challenging industrial uses. With customer satisfaction, competitive prices, and prompt delivery, the company caters to diverse industries such as petrochemical, power generation, chemical processing, and marine. They are internationally renowned for superior performance in aggressive environments.
316H Forged Fittings of stainless steel are manufactured from a high-carbon variant of 316 stainless steel with 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The increased carbon content provides strength as well as creep resistance at high temperatures. These forged fittings have superior mechanical properties, such as a tensile strength of around 515 MPa and good yield strength, and also superior corrosion resistance. The fittings are resistant to pitting, crevice corrosion, and intergranular attack, particularly in chloride-bearing and acidic solutions. The material also sustains superior weldability and toughness under severe thermal stress.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for our stainless steel 316H lattice fittings through rigorous testing and certification. Each device undergoes extensive testing, including tensile, hardness and corrosion resistance tests. We offer certificates of compliance, ensuring our fittings meet international industry standards for reliability and performance.
Corrosion-resistant and highly durable, Stainless Steel 316H Socket Weld Fittings are used for high-pressure applications. Sizes typically range from 1/4″ to 4″ in diameter. These fittings are designed for a strong, leak-proof connection in piping systems.

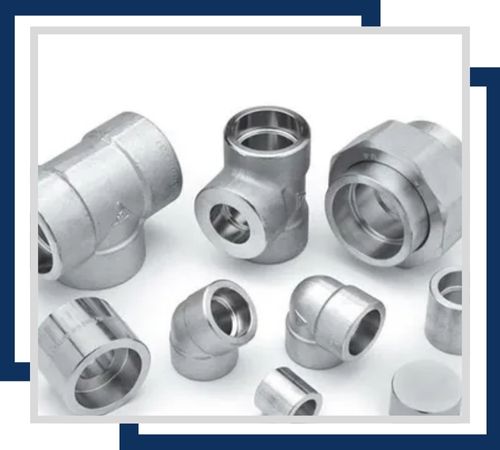

Offering excellent resistance to corrosion and high temperatures, Stainless Steel 316H Threaded Fittings are ideal for various industrial applications. They come in sizes from 1/8″ to 6″. These fittings provide easy installation and maintenance with threaded connections.
The Stainless Steel 316H Socket Weld 45 Degree Elbow combines corrosion resistance with high strength, allowing smooth changes in direction. Typically available in sizes from 1/4″ to 4″, it ensures reliable performance under high-pressure conditions.

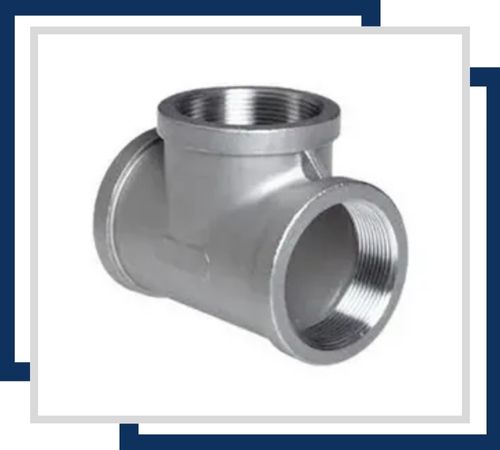

Featuring excellent resistance to corrosion and high durability, the Stainless Steel 316H Threaded Tee is used to connect and branch pipes. Sizes generally range from 1/4″ to 6″. It facilitates fluid flow in multiple directions efficiently.

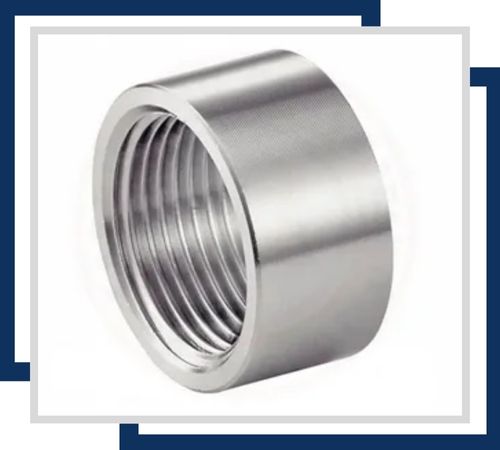

The Stainless Steel 316H Threaded Half Coupling provides strong corrosion resistance and is used to connect two sections of pipe. Available in sizes from 1/8″ to 4″, it offers easy installation and robust performance in various applications.
Known for its superior corrosion resistance, the Stainless Steel 316H Socket Weld Cross is used to connect multiple pipe lines. It comes in sizes from 1/4″ to 4″ and provides a reliable, high-strength connection suitable for complex piping systems.
Stainless Steel 316H Forged Fittings find extensive applications in corrosive and high-temperature environments like chemical plants, power stations, oil and gas refineries, and marine industries. They are perfectly suited for high-performance piping systems, pressure vessels, and heat exchangers that require strength, durability, and corrosion resistance. The fittings provide leak-proof, secure connections and long-lasting reliability and are therefore vital components in those industries that require performance under harsh operating conditions.
