Anucha Metals is a leading Stainless Steel 310 Bars manufacturer in Bangkok, Thailand, providing bars engineered for extreme heat and oxidation resistance. SS 310 is an austenitic stainless steel designed for high-temperature applications, offering outstanding resistance to creep, scaling, and thermal cycling. Our 310 stainless steel bars are available in round, flat, square, and hex forms, adhering to ASTM A276, A479, and ASME specifications. These bars are suited for furnace components, thermal processing, and heat exchangers, where the materials have to function within continuous exposure to high temperatures.
SS 310 has 24–26% chromium, 19–22% nickel, and ~0.25% carbon. It provides tensile strength ~520 MPa, yield strength ~205 MPa, and structural integrity at temperatures up to 1150°C. SS 310 is an excellent oxidation-resistant alloy, has thermal strength, and is non-magnetic when annealed. SS 310 is also good at welding and resistant to sulfidation and carburization.
| ASTM Specifications | ASTM A276, A479 /ASME SA276, SA479 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Hex Bars in Milimeter | 18mm – 57mm (11/16″ to 2-3/4″) |
| Round Bars Diameter | Outside Diameter in the range of 4mm to 500mm |
| Bright Bars Diameter | Outside Diameter in the range of 4mm to 100mm |
| Square Bars in Milimeter | 18mm – 47mm (11/16″ to 1-3/4″) |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Flat Bars in Milimeter | 1/2” to 10” in thickness range of 2mm to 150mm, |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| Element | SS 310 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 217 |
Contact us to get a quick quote for your requirement.
We thoroughly tests 310 stainless steel bars to ensure quality and performance. Our products go through mechanical, chemical and corrosion resistant testing. We offer relevant certifications, including Material Testing Certificates (MTC), confirming compliance with international standards, ensuring reliability, durability and quality for every application.

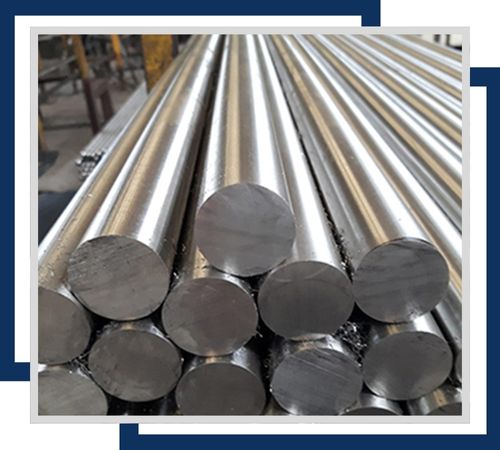

Stainless Steel 310 Round Bars provide exceptional heat resistance, available in diameters from 6mm to 500mm. Suitable for high-temperature applications such as furnace parts and heat exchangers, they ensure durability and reliability.
Stainless Steel 310 Flat Bars are available in thicknesses from 3mm to 100mm and widths from 12mm to 300mm. Ideal for structural and industrial applications, these bars offer excellent thermal stability and strength.

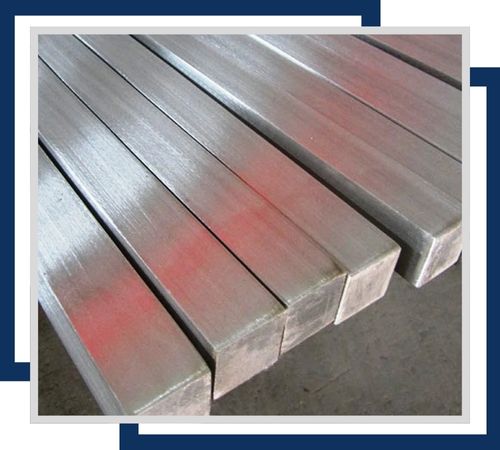

Stainless Steel 310 Square Bars, ranging from 6mm to 150mm, are designed for high-temperature environments. Their superior heat resistance makes them suitable for use in furnace components and industrial machinery.
Stainless Steel 310 Rectangular Bars are available in thicknesses from 5mm to 100mm and widths from 10mm to 200mm. These bars are ideal for structural support in high-temperature applications, providing excellent strength and stability.
Stainless Steel 310 Hexagonal Bars, with sizes from 6mm to 100mm across flats, are perfect for high-temperature applications requiring strong, heat-resistant materials. They are commonly used in fasteners and fittings.

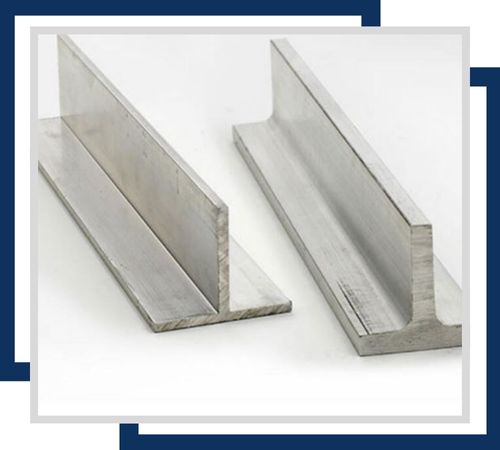

Stainless Steel 310 T Bars offer robust structural support, available in sizes from 20mm to 100mm in width. These bars are used in construction and architectural applications, providing high strength and heat resistance.
SS 310 bars are employed in furnace parts, kilns, combustion chambers, exhaust manifolds, thermal processing machinery, and boiler components. Their thermal cycling characteristics make them best suited for petrochemical, power generation, and steel production industries. SS 310 bars are also employed in incinerators, heat treatment baskets, and radiant tubes. SS 310 is the material of choice for harsh temperature usage where oxidation resistance and mechanical strength are essential.
