Chanchai Stainless is a reputable manufacturer and provider of high-performance stainless steel products in Bangkok, Thailand. Of its premium products, Stainless Steel XM19 Bars are particularly known for their superior strength, resistance to corrosion, and durability in harsh environments. These bars are designed to achieve global quality and are best used in maritime, chemical, and high-stress structural uses. Chanchai Stainless offers XM19 bars in sizes and finishes of choice for various industries that require superior mechanical capability and extended service life. With much emphasis placed on ensuring quality and customer satisfaction, the company continues to be a reliable partner to various industries.
Stainless Steel XM19 Bars are manufactured from a nitrogen-strengthened austenitic alloy containing high concentrations of chromium, nickel, molybdenum, and nitrogen. The composition provides substantially greater strength than 316 and 304 stainless steels, with tensile strength well in excess of 690 MPa and yield strength in excess of 380 MPa. The bars are also very ductile, typically elongating more than 30%, and retain impact toughness even at sub-zero temperatures. Distinguished by excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, XM19 bars are characterized by non-magnetic properties in annealed state and are best suited for severe mechanical and corrosive conditions.
Material | Specification | Standards | Size | Length |
Stainless Steel XM19 Bars | ANSI ,DIN,ASME,ASTM | ASTM / ASME – A/ SA 320 | M4-M100(1/4-4 inch) | M02 to M33 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| XM19 | min. max. | – 0.06 | 4.0 6.0 | – 1.00 | – – | – – | 20.5 23.5 | – | 11.5 13.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| XM19 | 100 KSi | 55 KSi | 35% | 55% | 293 |
Contact us to get a quick quote for your requirement.

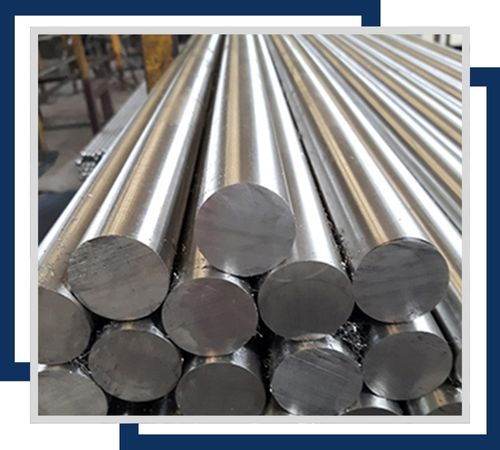

These bars are cylindrical in shape and known for their excellent corrosion resistance, high strength, and versatility. They are widely used in industries requiring durable and corrosion-resistant components.

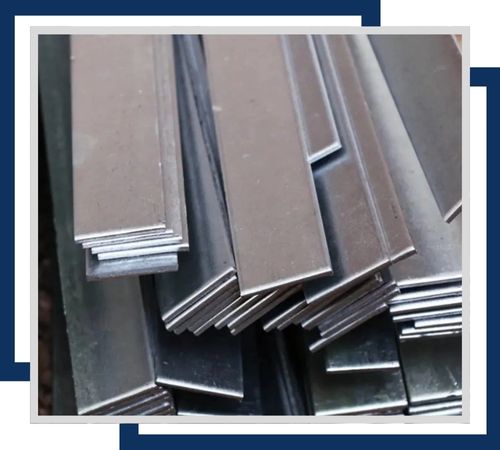

These bars have a flat, rectangular profile, providing superior strength and resistance to oxidation and corrosion. They are commonly used in structural applications and heavy-duty machinery.
With a square cross-section, these bars offer exceptional mechanical properties and resistance to harsh environments, ideal for applications requiring high strength and durability.
These bars have a rectangular profile and are highly resistant to corrosion and high temperatures, making them suitable for a variety of industrial applications.

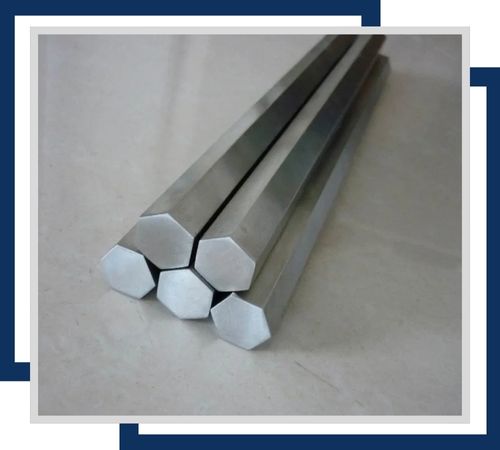

Hexagonal bars offer a unique shape for aesthetic and functional purposes, with high resistance to wear and tear, corrosion, and elevated temperatures, ideal for custom designs and structural uses.
Featuring a T-shaped cross-section, these bars provide excellent load-bearing capabilities and are used in various structural applications where strength and corrosion resistance are critical.
Chanchai Stainless is dedicated to providing premium-quality materials, including Stainless Steel XM19 Bars, that undergo a series of stringent tests like hardness, spectrochemical analysis, PMI testing, micro and macro testing, flaring, pitting resistance and IGC tests. We ensure optimal performance and compliance with industry standards. Our clients receive complete documentation, including invoices, packaging details, a Certificate of Origin and a Third-Party Inspection Certificate, ensuring full transparency and satisfaction with pricing.
Stainless Steel XM19 Bars find extensive applications in those industries where a blend of high strength and excellent corrosion resistance is needed. Typical applications are marine shafts, pumps, valves, fasteners, offshore drilling components, and desalination systems. They are also applied in chemical processing, pulp and paper manufacturing, and power plant facilities where the presence of chlorides or corrosive chemicals is prevalent. Their lack of magnetism and galling resistance makes them suitable for precision parts and moving items. Chanchai Stainless provides XM19 bars in lengths and diameters to suit individual customers’ requirements within highly corrosive and mechanically demanding environments.
