Anucha Metals, a top-notch manufacturer and supplier located in Bangkok, Thailand, specializes in high-quality Stainless Steel 316 Valves that are built to withstand corrosion, ensure durability, and perform exceptionally well in tough service conditions. Crafted to meet international standards, these valves are perfect for managing the flow of liquids and gases in highly corrosive or marine settings. Stainless Steel 316 is an austenitic stainless steel grade that’s enhanced with molybdenum, giving it superior protection against pitting, crevice corrosion, and chloride-induced damage compared to the standard 304 grades. Anucha Metals offers a variety of Stainless Steel 316 Valves in different types, sizes, and pressure ratings to cater to the diverse needs of industries like chemical processing, oil & gas, food and beverage, pharmaceuticals, and marine engineering.
These valves are primarily made up of iron, chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), along with carefully controlled amounts of carbon, manganese, silicon, phosphorus, and sulfur. This well-balanced composition boosts corrosion resistance, especially in environments with chloride, while also ensuring excellent mechanical strength, ductility, and toughness across a wide range of temperatures. The austenitic microstructure makes them easy to fabricate and weld, ensuring long-term reliability in both high-pressure and high-temperature situations.
| Material | Stainless Steel |
|---|---|
| Seal Material | PTFE/ RPTFE |
| Working Pressure | 1.6 – 6.4Mpa |
| Working Temperature | -29°C — +180°C |
| Availabe Size | 1/2″-4″,(DN15-DN100) |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Operation | Manual,Pneumatic, Electric |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Standards | GB9112,DIN2501,BS4504,ISO2084,ANSI125 |
| Applications | Water, Oil, Gas, |
| Nominal Diameter | DN40-DN300 handle lever |
| Operation Temperature | -10°C~150°C |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 316 valves, available in sizes from 1/4″ to 12″, offer superior corrosion resistance and durability. Ideal for harsh environments, they ensure reliable performance in marine, chemical, and high-temperature applications.

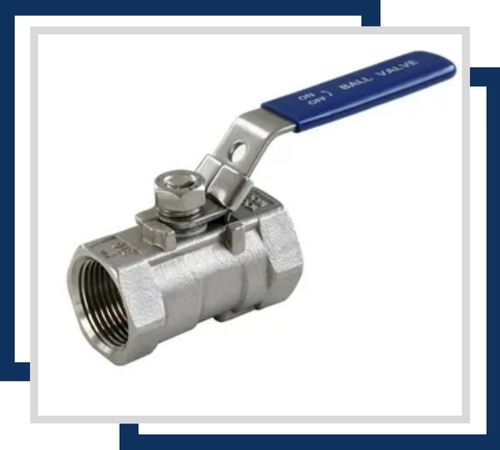

Stainless Steel 316 ball valves, ranging from 1/4″ to 6″, provide smooth, reliable flow control with excellent corrosion resistance. Suitable for aggressive fluids and high-pressure environments, they ensure robust and long-lasting performance.
Stainless Steel 316 butterfly valves, available from 2″ to 12″, offer efficient flow regulation with high corrosion resistance. Their durable construction makes them ideal for use in chemical processing and marine applications.
Stainless Steel 316 globe valves, sized from 1″ to 12″, deliver precise flow control with exceptional corrosion resistance. Perfect for high-pressure and high-temperature applications in industrial and marine environments.
Stainless Steel 316 needle valves, available in sizes from 1/4″ to 2″, provide accurate flow control and high corrosion resistance. Ideal for handling aggressive fluids and high-pressure systems.

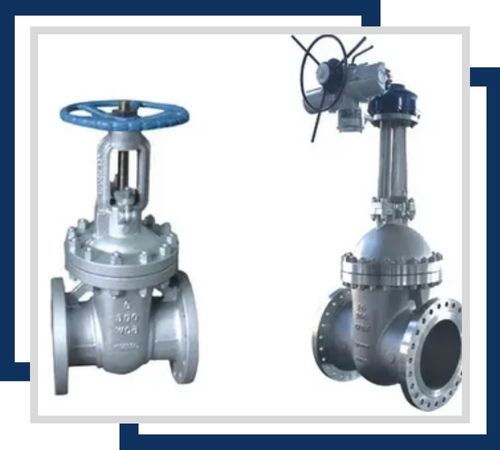

Stainless Steel 316 gate valves, sized from 1″ to 12″, offer reliable on/off flow control with excellent corrosion resistance. Suitable for marine, chemical, and industrial applications, they ensure durability and performance.
Chanchai Stainless ensures top-quality Stainless Steel 316 Valves through rigorous testing, including hardness, PMI, tensile, micro/macro structural, pitting resistance and IGC tests. We provide comprehensive documentation, including commercial invoices, packaging lists, labels and a Certificate of Origin legalized by the Chamber of Commerce or Embassy. A Third-Party Inspection Certificate guarantees customer satisfaction with pricing and delivery.
Stainless Steel 316 Valves are commonly found in chemical plants, marine systems, pharmaceutical equipment, food processing lines, water treatment facilities, and oil & gas refineries. They’re ideal for applications that require precise flow control, resistance to harsh chemicals, or constant exposure to saltwater and other corrosive substances. With their combination of strength, resistance to aggressive media, and low maintenance needs, Stainless Steel 316 Valves are the go-to choice for industries looking for safe, durable, and high-performance valve solutions for critical fluid control systems.
