Chanchai Stainless is a reliable producer and exporter of stainless steel products based in Bangkok, Thailand, with a specific emphasis on producing high-quality Stainless Steel 316 and 316L channels. The channels are specifically intended to provide superior strength, corrosion resistance, and durability in challenging and demanding environments. Exporting to different industries like construction, marine, chemical, and industrial fabrication, Chanchai Stainless guarantees all its products meet international standards. By maintaining a reputation for reliability, timely delivery, and competitive pricing, the company has emerged as a first-choice source for stainless steel channels across Thailand and neighboring areas.
Stainless Steel 316/316L channels consist of iron as the major component, 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with 316L having a reduced carbon content for improved weldability. These alloys provide good mechanical properties with minimum tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of approximately 40%. Molybdenum addition provides enhanced pitting and crevice corrosion resistance, especially in chloride-containing environments. Stainless Steel 316/316L channels have strength and corrosion resistance up to elevated temperatures, making them ideal for structural and high-performance industrial uses.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 316/316L channels are structural elements made from corrosion-resistant stainless steel. They provide high strength and durability, ideal for marine, chemical, and high-temperature applications.

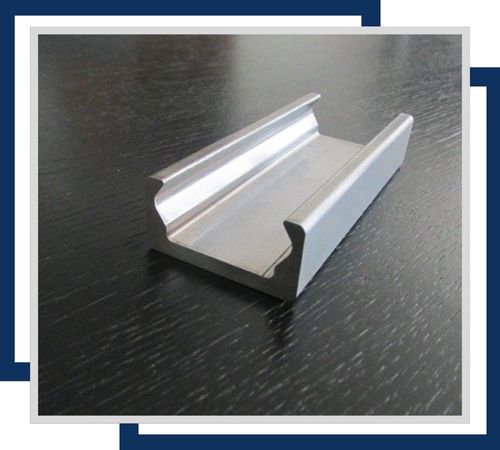

SS 316/316L C channels are stainless steel sections shaped like a “C,” offering high strength and superior corrosion resistance. They are used for support and framing in demanding environments.

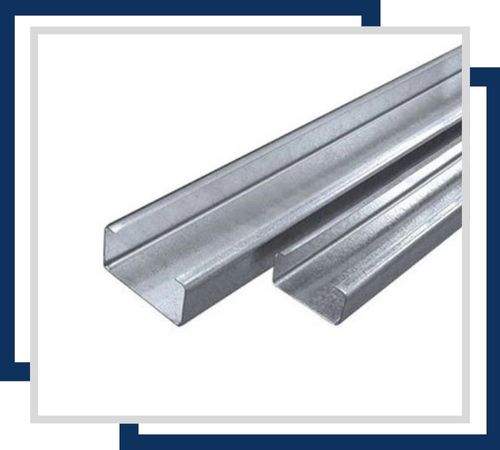

Stainless Steel 316/316L U channels are structural components with a “U” shape, known for excellent strength and corrosion resistance. They are used in marine, chemical, and high-temperature environments for support and reinforcement.
SS 316/316L strut C channels are stainless steel sections with a “C” shape, designed for robust support and framing. They offer high strength, durability, and excellent corrosion resistance for industrial applications.

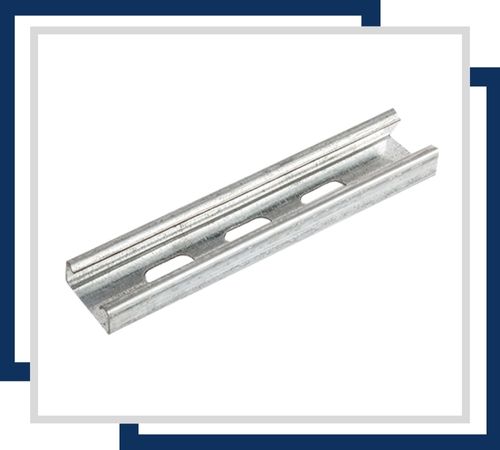

SS 316/316L cold-rolled Unistrut channels are stainless steel channels produced through cold rolling. They offer high strength, excellent corrosion resistance, and are used for versatile support and framing in demanding environments.
SS 316/316L double C type channels are stainless steel sections with two “C” shapes back-to-back. They provide enhanced strength and stability, suitable for heavy-duty support and structural applications in harsh environments.
Each Stainless Steel 316/316L Channel is carefully packed with the use of best materials for its prevention from undergoing damages upon corrosion whether in processing or during shipping to its destination. Packing the materials as such, we always see to it that our orders reach our customers in the best possible and timely way due to available transport systems and modes. Requisite accompanying documentation all highest will be handed over to customers as soon as delivery is accomplished to make the deal seem smooth and transparent.
Stainless Steel 316/316L channels are commonly employed in support and structural frameworks in corrosive environments. Their chemical resistance and rust resistance qualify them to be used in marine applications, coastal construction, and offshore platforms. In the chemical and pharmaceutical sectors, these channels are employed for equipment supports and structural parts that have to resist aggressive chemicals. Food processing and dairy plants are also suited by their hygienic nature. In addition, they are also employed in wastewater treatment facilities, bridges, architectural structures, and transit infrastructure owing to their high strength, durability, and long lifespan.
